SHAFT STRAIGHTENING SPECIALIST

We can Cold Straighten Shafts from 20mm up to 1,500mm in Diameter with no Limitation on Length

Even the most severe bendings can be straightened.

When others might consider replacement, we offer a cost-effective and fully class-approved alternative. Regardless of where propeller or rudder damage occurs globally, choosing cold straightening over replacement often reduces costs and lead times while extending the service life of the shaft.

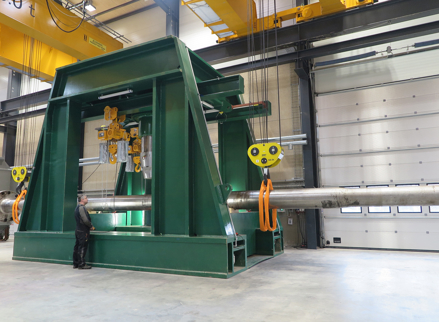

We perform cold straightening without applying heat by utilizing our purpose-built hydraulic presses, capable of exerting up to 6,000 tonnes of force. Our technique preserves the original metallurgy, making it a trusted permanent class-approved repair solution.

Each straightening project is carefully planned to guarantee lasting results, achieving precision alignment with a maximum deviation of just 0.05 mm.

NDT Accurate Crack Detection

All shafts are inspected using non-destructive testing before and after cold straightening to ensure there are no cracks

Non-destructive testing (NDT) is a fundamental process in the MarineShaft workshop, ensuring the integrity and quality of components before, during, and after repairs. NDT is essential for detecting cracks and defects in parts that have sustained damage, serving as a vital tool for verifying the reliability of materials.

NDA testing

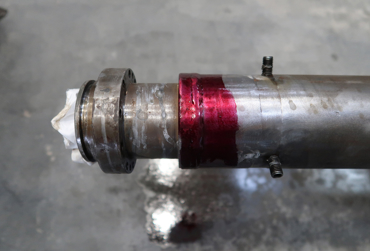

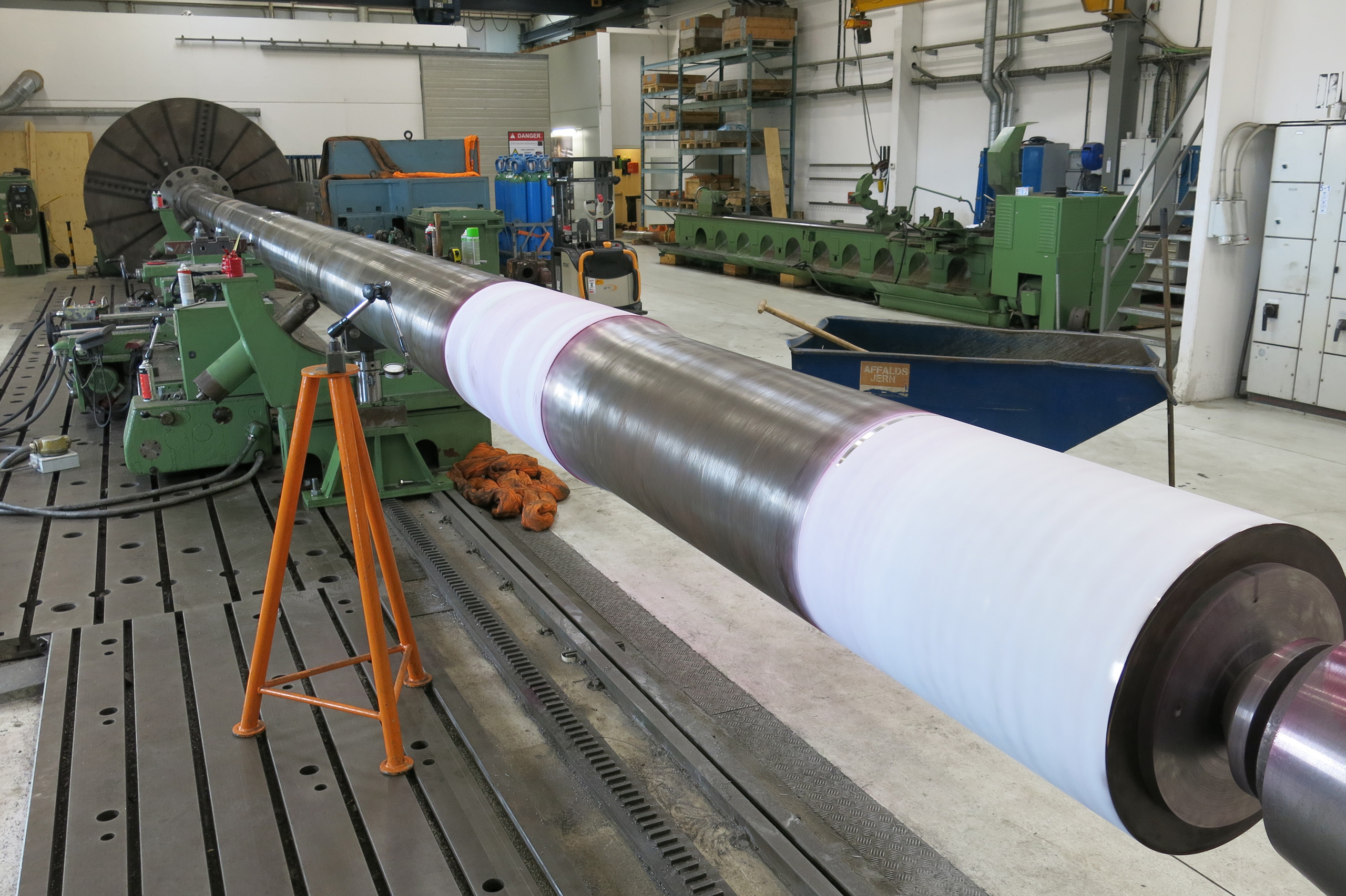

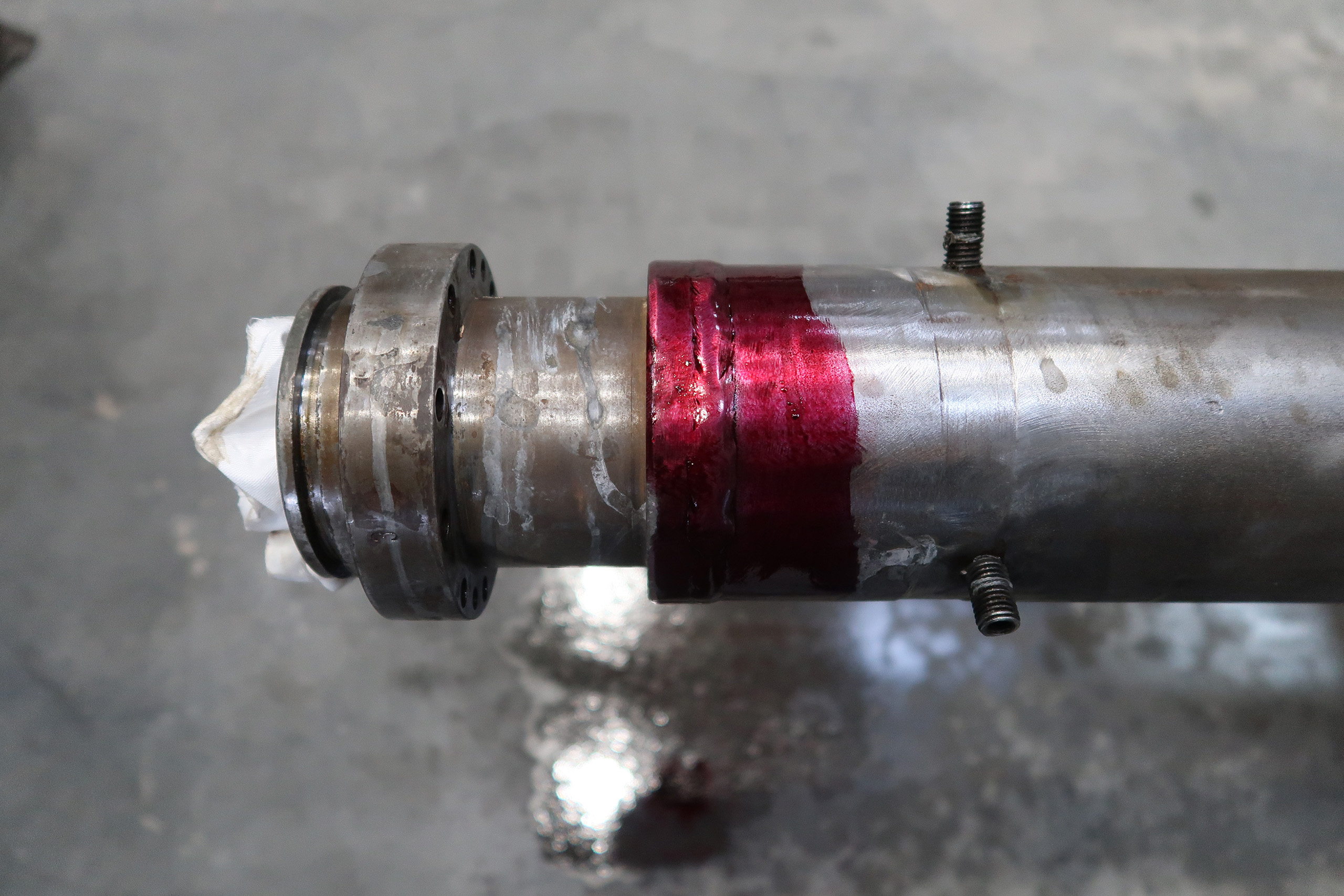

Liquid penetrant test to look for cracks

Fully class approved

Our cold straightening method, first approved by Bureau Veritas in 1972, has since gained recognition from all leading classification societies as a permanent repair solution without conditions

After every straightening job, a surveyor from the relevant classification society reviews and approves the job. The process is fully documented, and a class certificate is issued to ensure compliance and quality.

Why replace if repairable?

Class-Approved Shaft Cold Straightening

Shaft Straightening Procedure

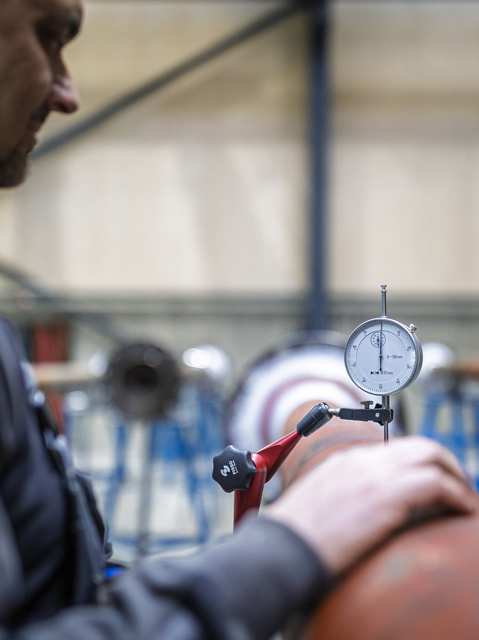

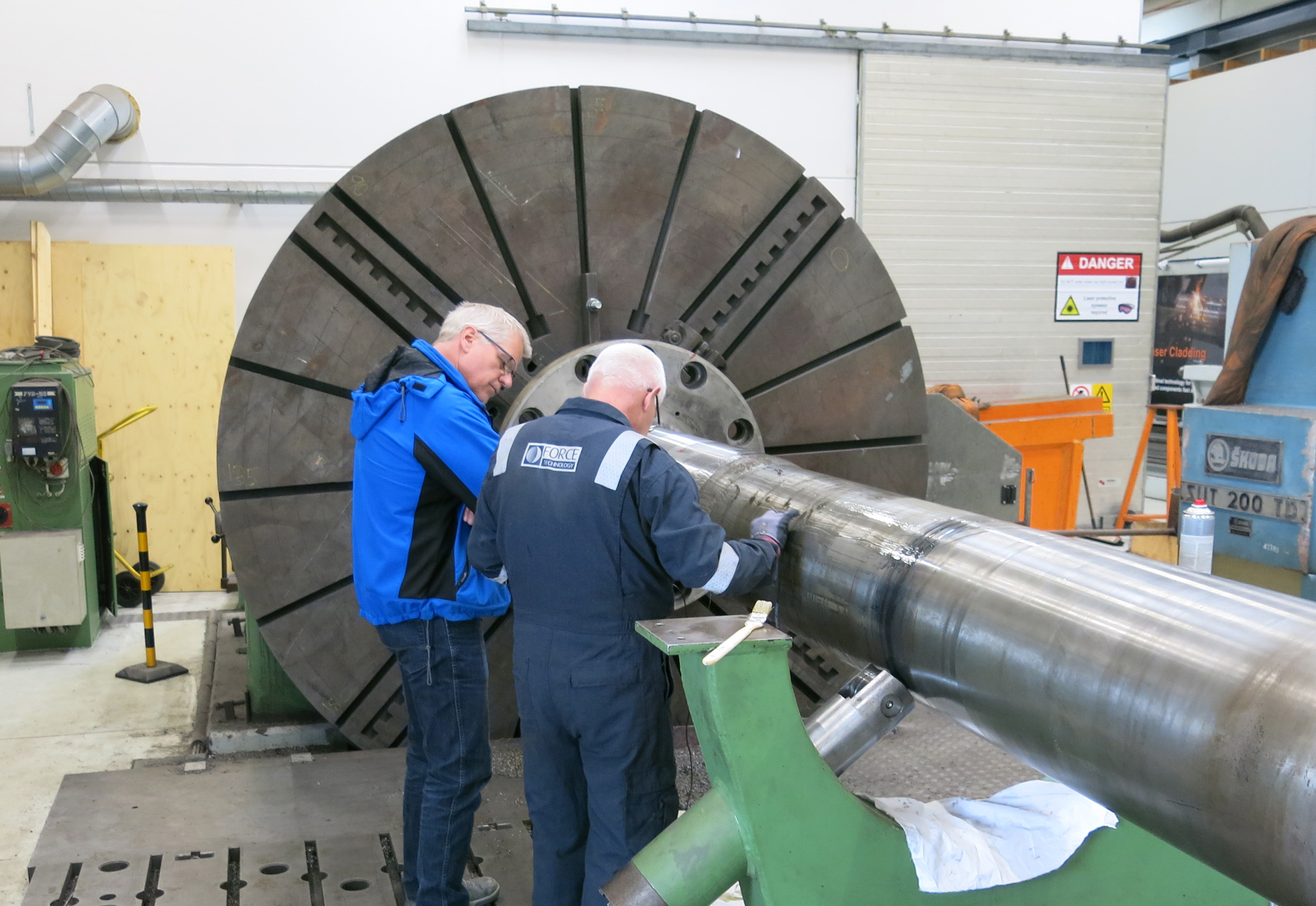

Initial inspection and measurement of the shaft
Non-destructive testing (NDT), including penetrant inspection for crack detection
Evaluation and repair procedure approval by the classification society
Cold straightening using our class-approved technique
Final inspection, including NDT for crack testing
Repair work approved by classification society
Delivery of a comprehensive repair report

Case study: CPP propeller shaft repair

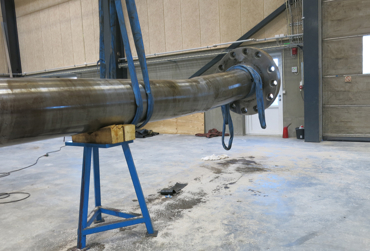

Shaft damage - with a deflection of 7.7 degrees

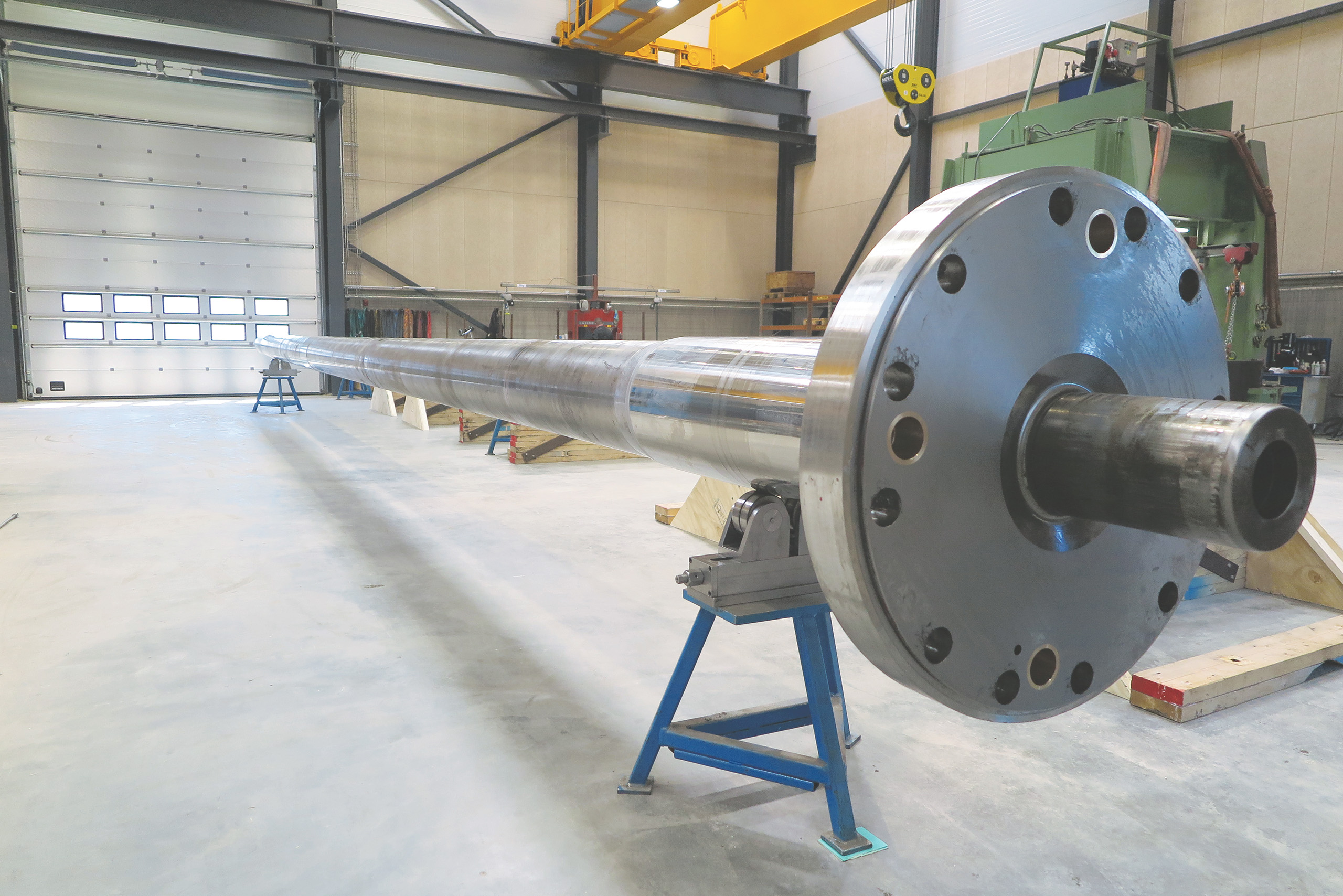

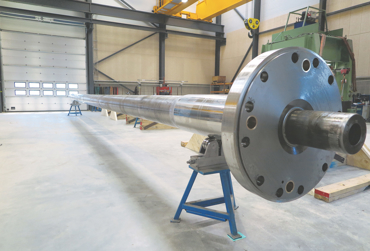

In 2021 the ferry M/F Paglia Orba had an unfortunate incident while entering port. The Propeller Equipment was severely damaged. In only 3 weeks, we completed this repair with full class approval.

The job included:

Cold straightening and repair of intermediate shaft - 1 pc. of Ø390 x 7450 mm.
Cold straightening and repair of propeller shaft - 1 pc. of Ø1058/421 x 18875 mm including twin tube.
Repair of the propeller shaft bearing journals by laser cladding

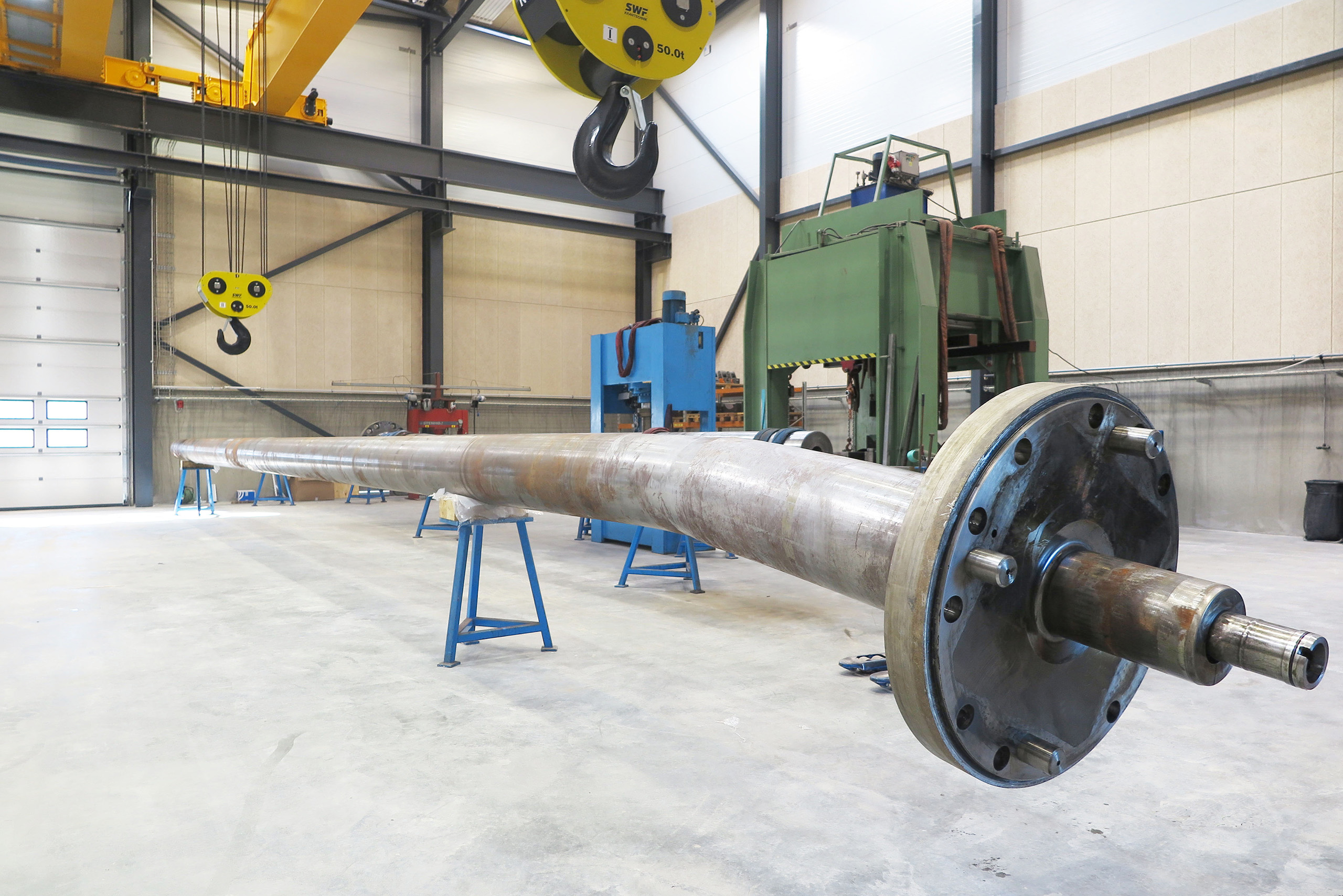

Paglia Orba bent propeller shaft before repair

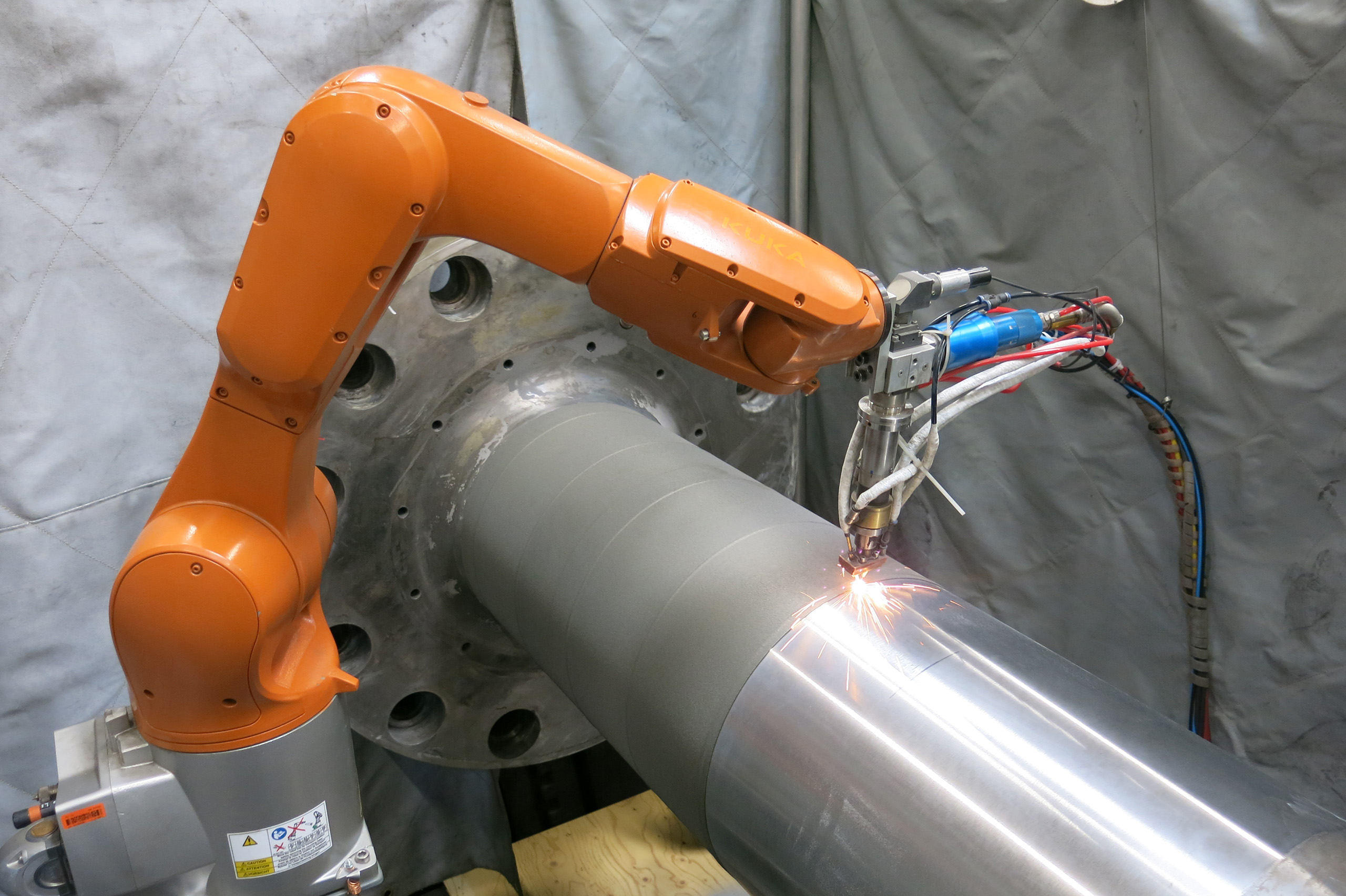

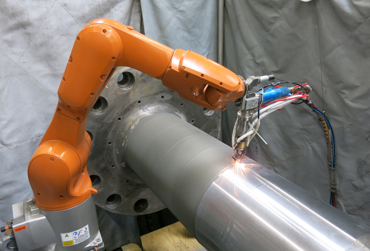

Laser cladding of Paglia Orba propeller shaft

“The job done by the MARINESHAFT team is amazing. I was really impressed by your knowledge, technicity, and trust to restore the shaft. Lot of skeptic’s persons told me; you are wrong by attempting to repair instead of manufacturing a new one. I am now happy to prove them different. ”

Bruno Rogier Superintendent on the project M/F Paglia Orba, Corsica Linea SAS

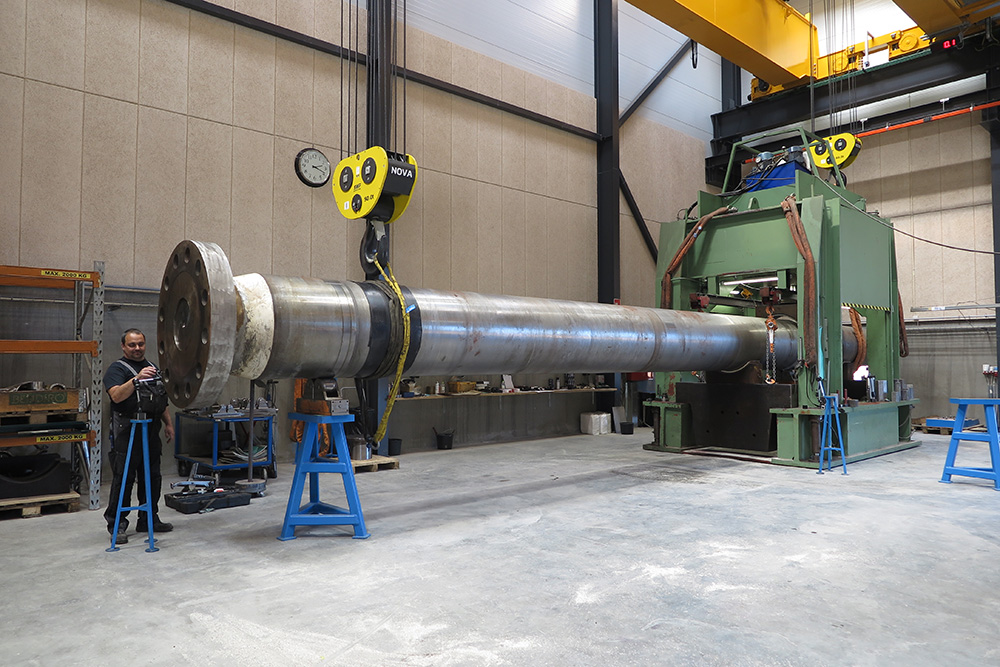

Case study: Tail Shaft Straightened in Just 8 Days

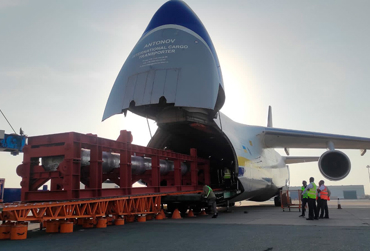

63-Ton Tail Shaft sent by aircraft from Dubai for urgent Cold Straightening

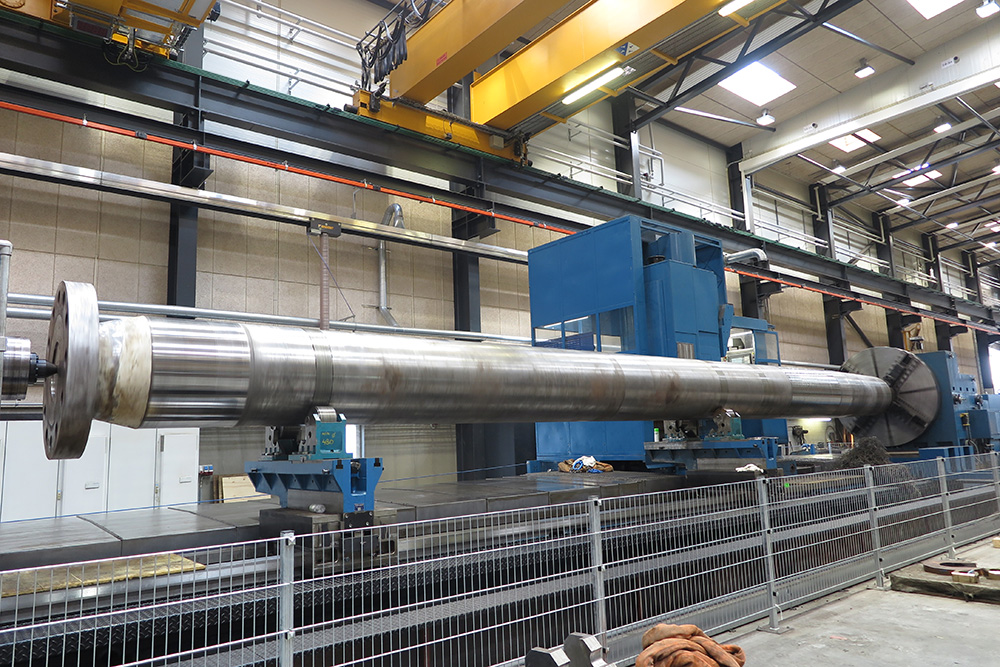

A vessel in Dubai experienced tail shaft misalignment, causing a minor bend in the aft section, including the bearing journal and cone.

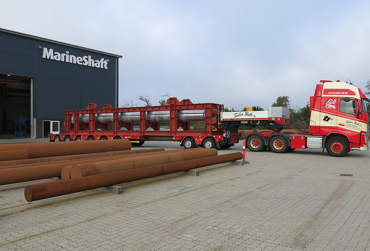

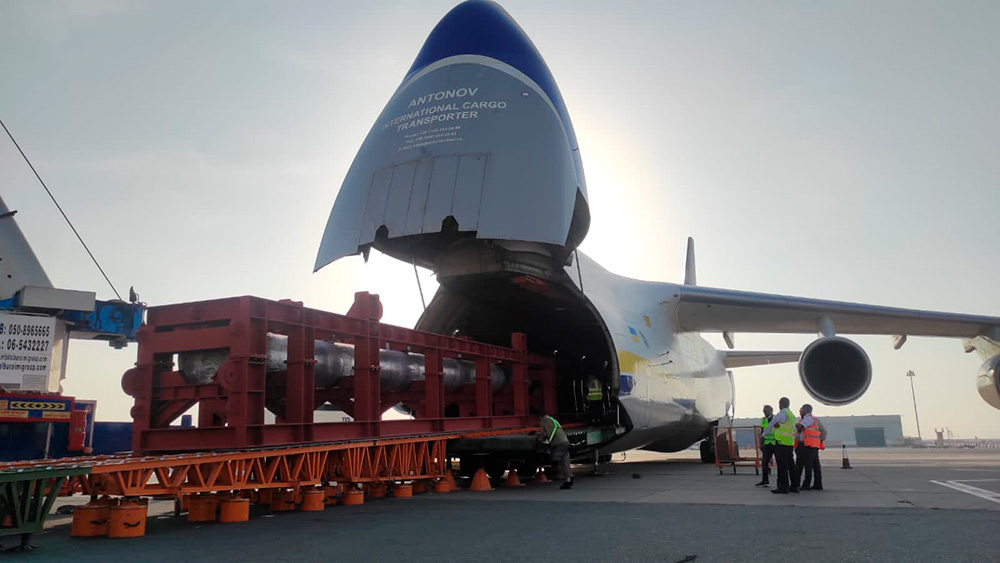

The 63-ton shaft was air-freighted to Denmark and transported by truck directly to our workshop.

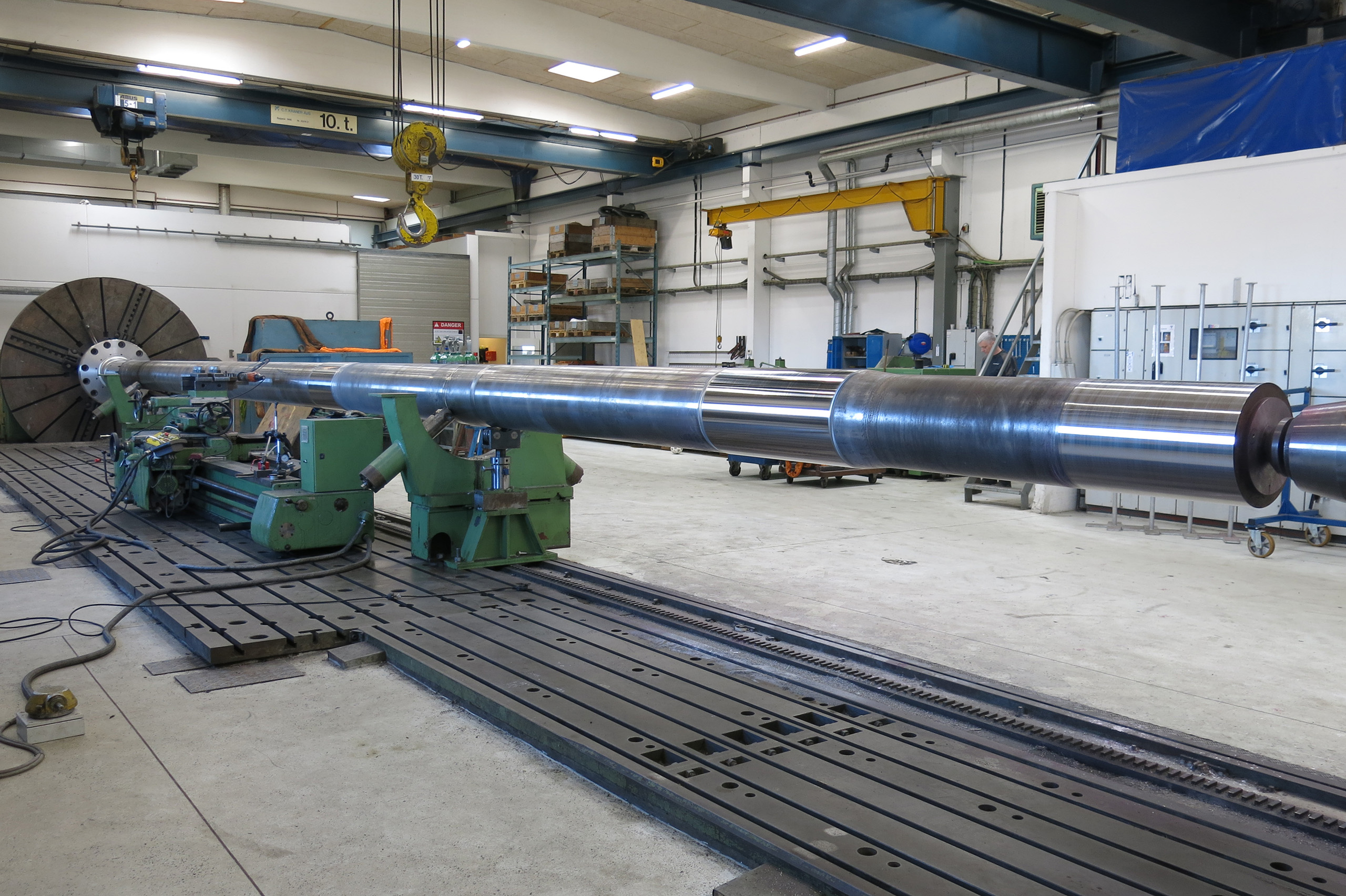

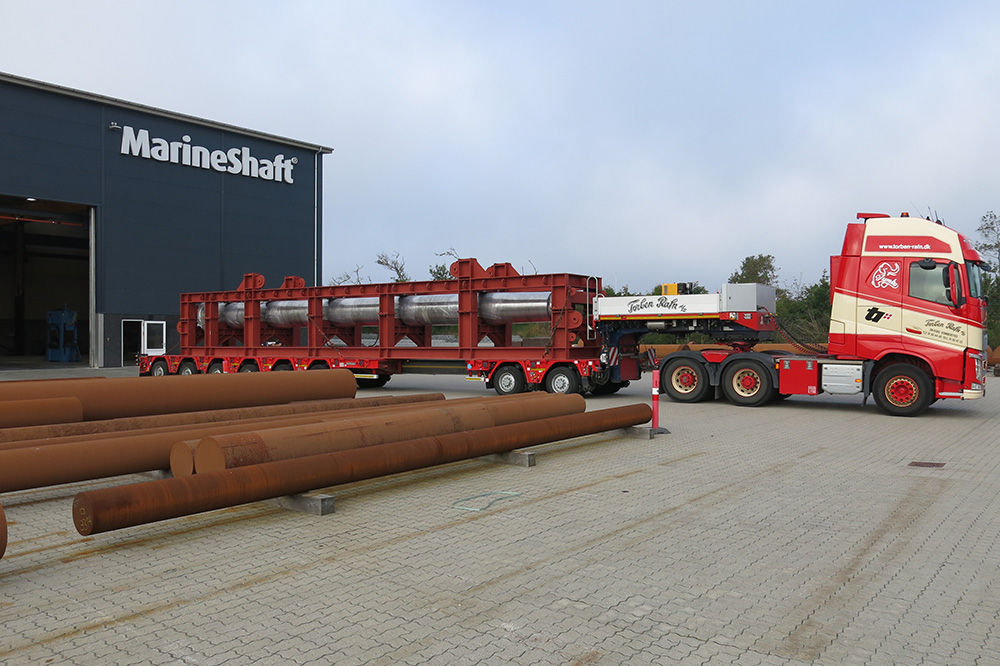

Our team performed cold straightening and machining, restoring full alignment within eight days. The shaft was immediately flown back for urgent reinstallation, avoiding the long lead time of manufacturing a new component.
