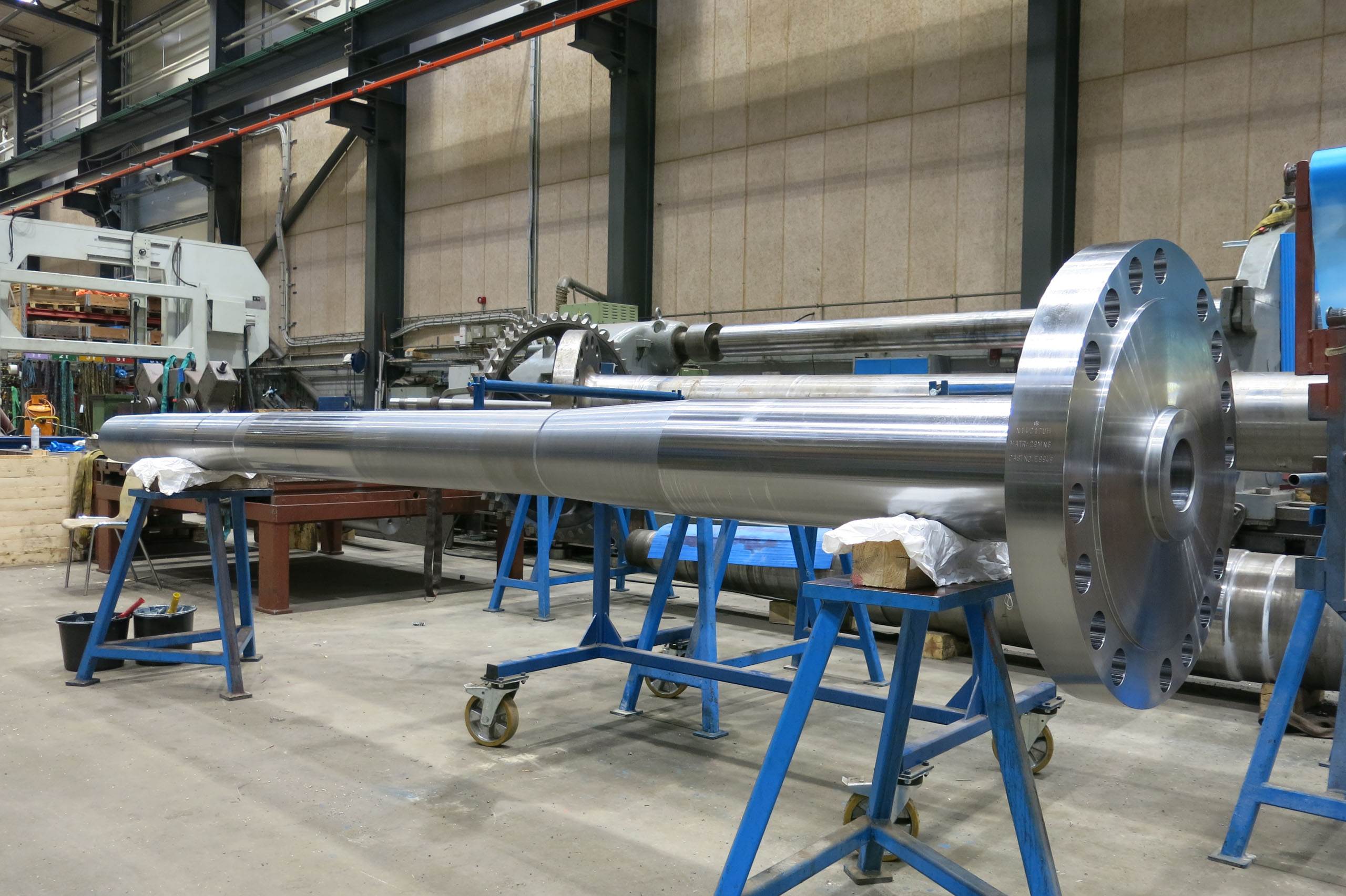

Manufacturing of Shafts and Rudder Stocks

MarineShaft manufactures new propeller shafts, tail shafts, intermediate shafts, and rudder stocks tailored to exact requirements. All components are produced in-house using class-approved steel sourced exclusively from reliable European suppliers.

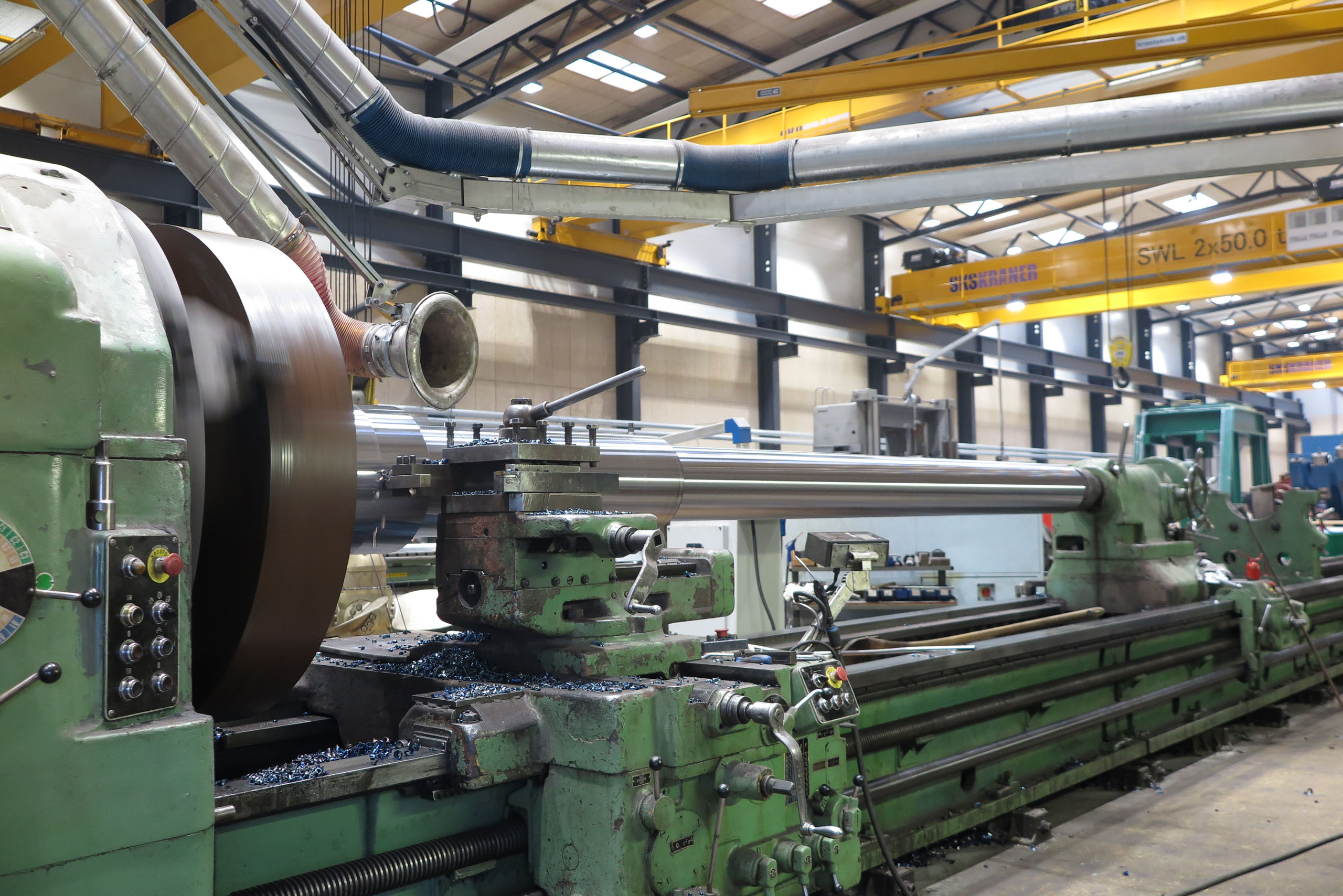

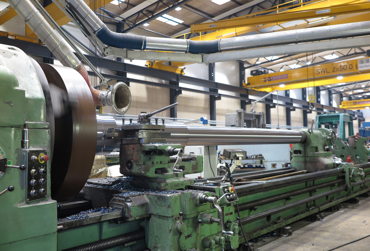

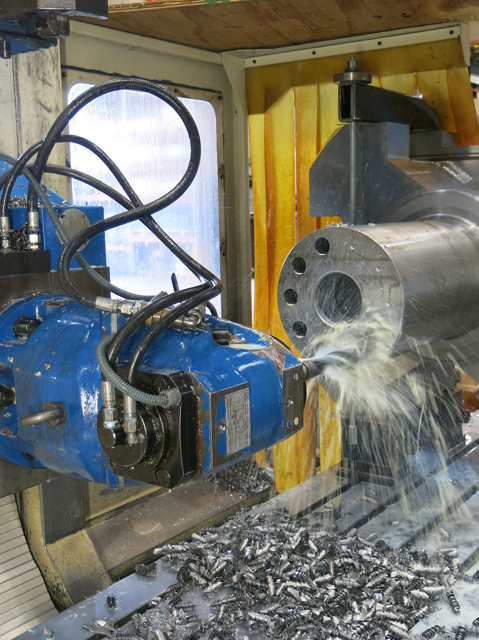

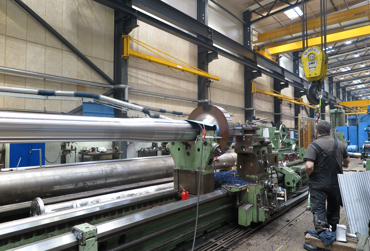

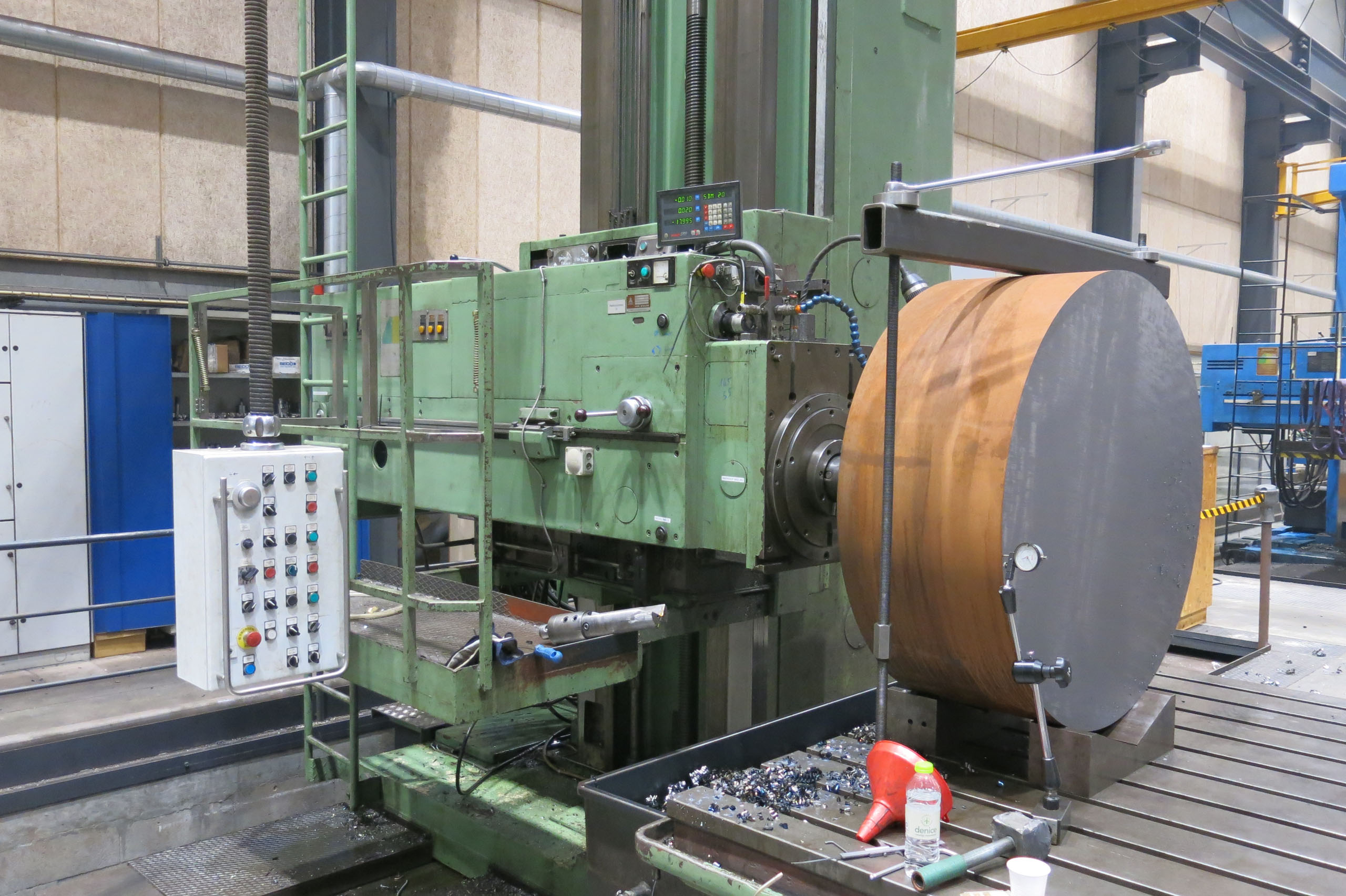

Our machining capabilities include turning, milling, boring and polishing of shafts up to 27 meters in length. We work with high-grade materials, including S355J2, C45, 28Mn6, 34CrNiMo6, 42CrMo4, and duplex stainless steel 1.4462, which meet the demands of both commercial and naval marine applications.

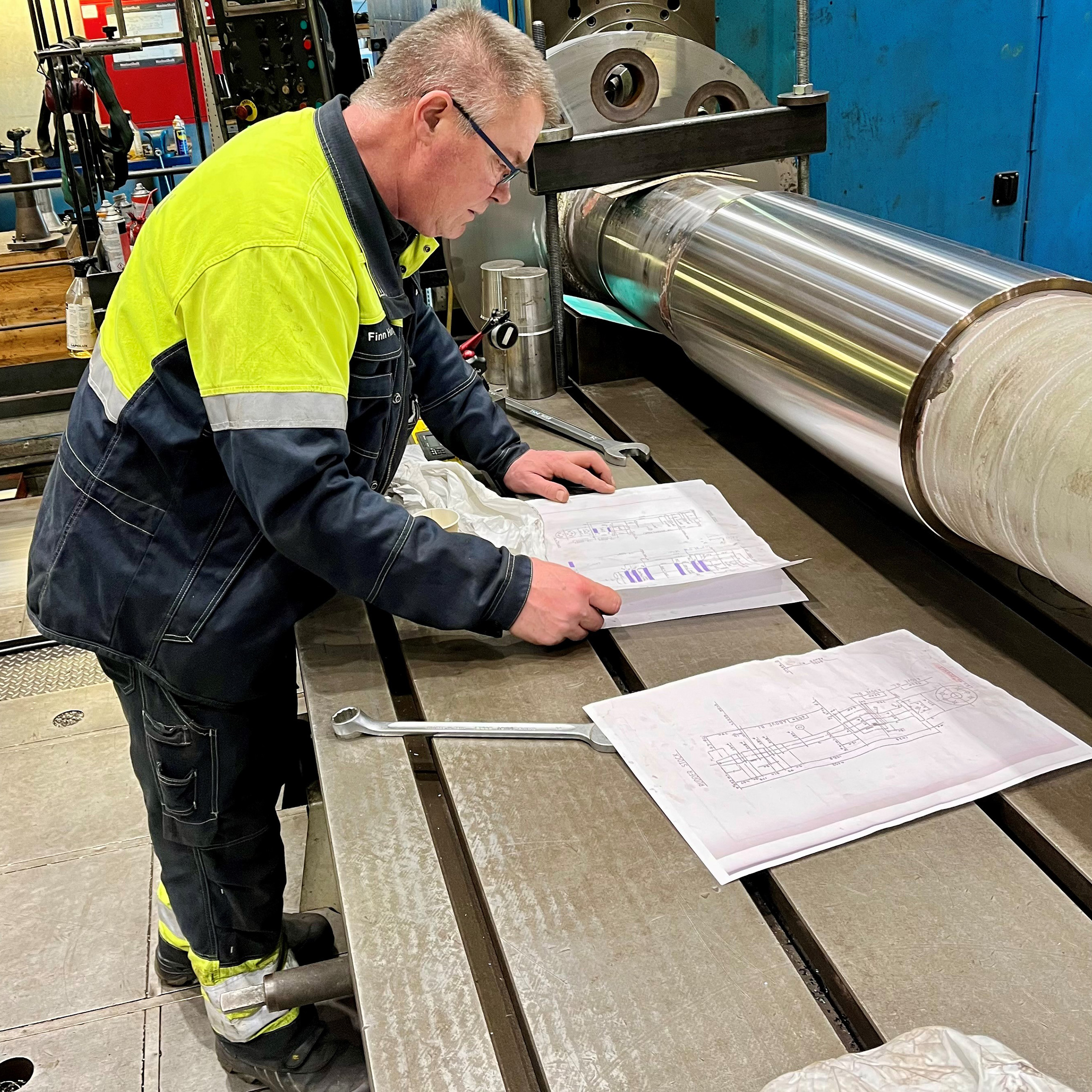

Reliable technical expertise

In addition to complete shaft lines and rudder systems, we manufacture a variety of essential maritime components to exact specifications, such as:

Custom-made hydraulic couplings
Rudder pintles and bushings
Liners, sleeves, and composite bearings
Bolts, nuts, and other components

Certified manufacturing solutions

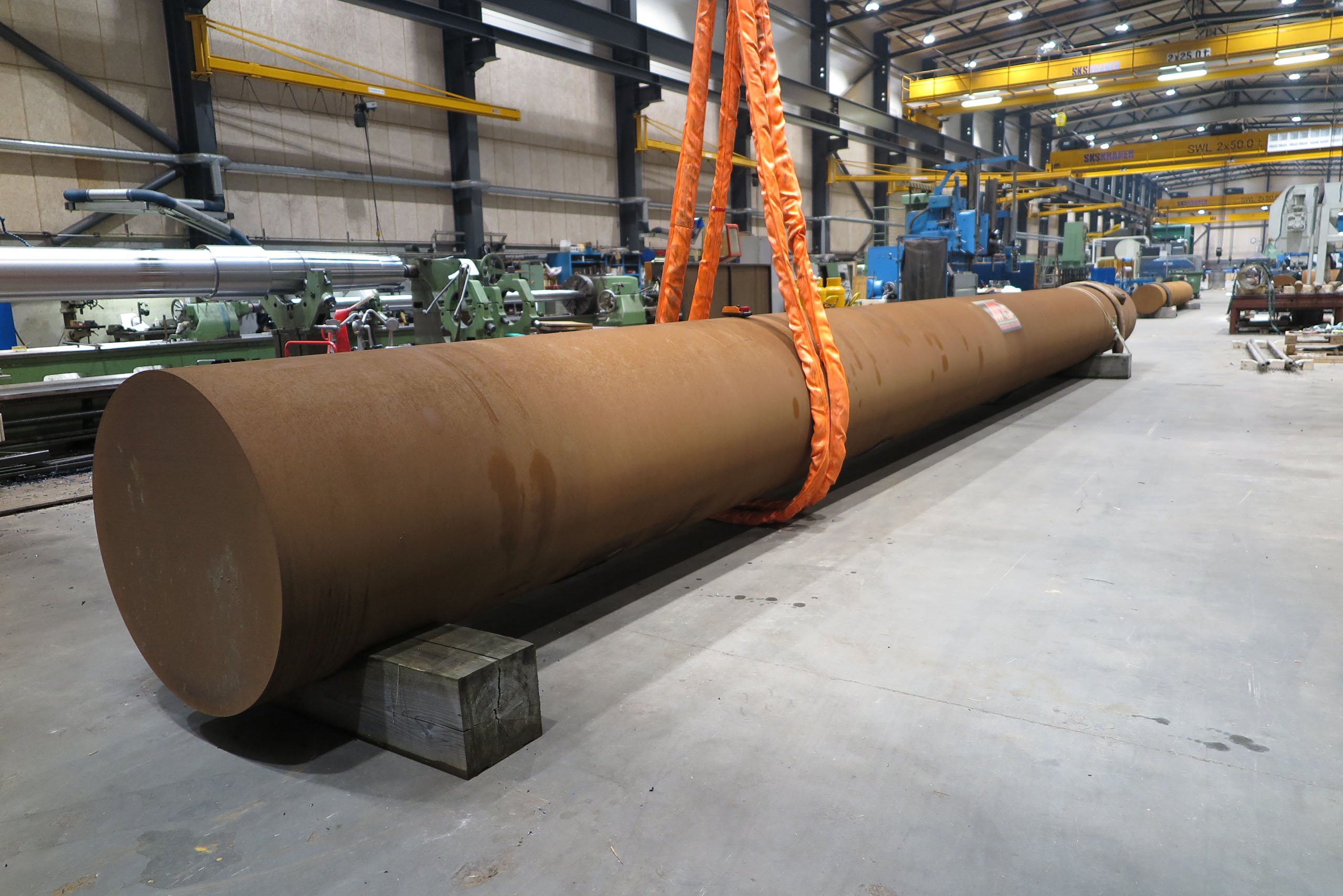

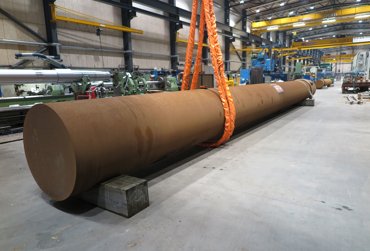

Raw material from reliable European suppliers

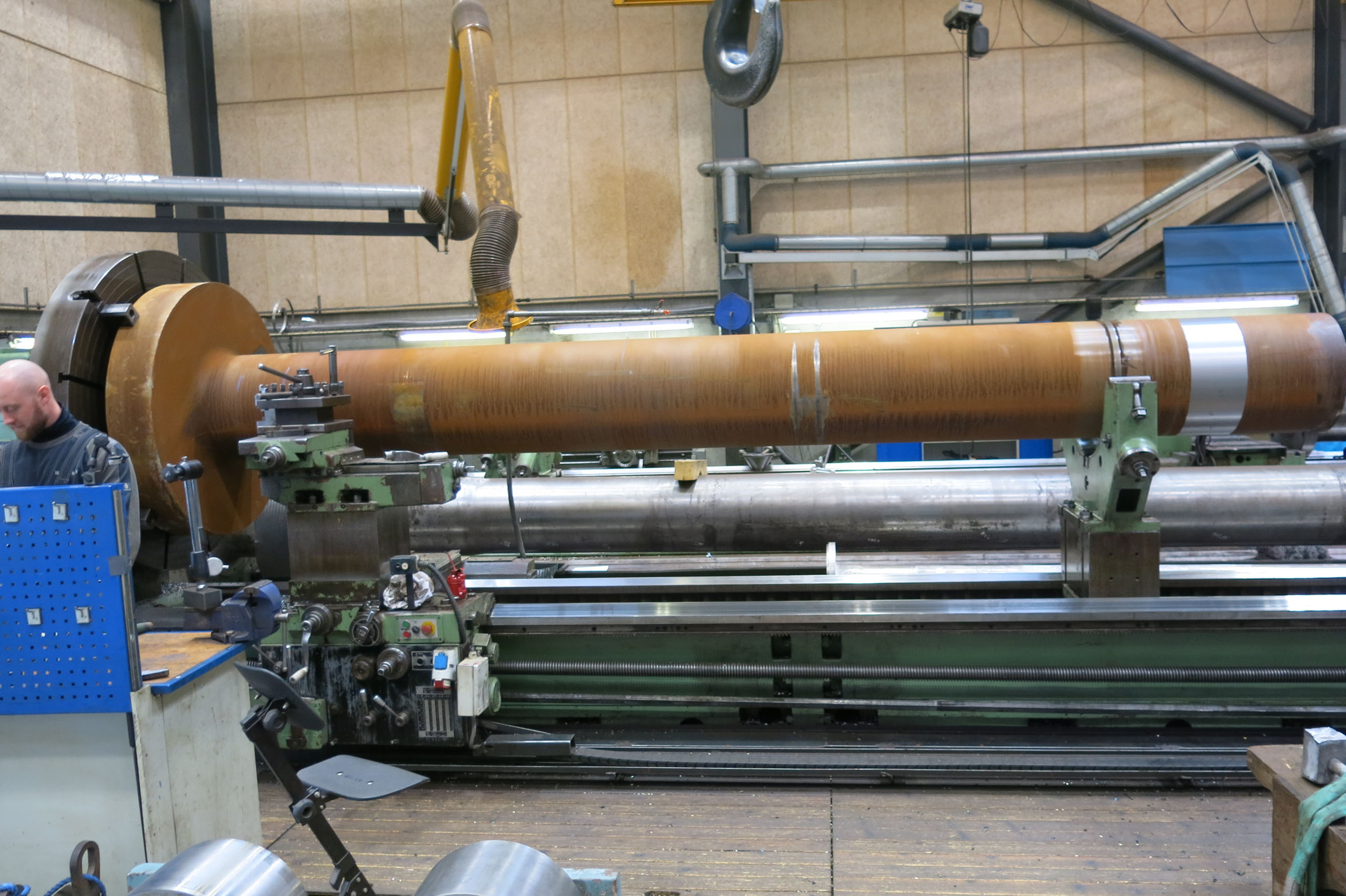

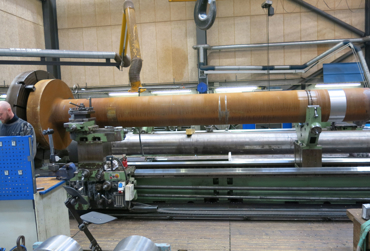

To meet tight deadlines, we stock a large stock of class-approved raw materials with 3,2 certificates

Round bars in S355J2, C45, 28Mn6, C-Mn, 34 CrNiMo6, 42CrMo4, etc
Round bars with a diameter up to 1,000 mm and a length up to 18,500 mm.
Plates in S355J2 up to a thickness of 150 mm
Propeller shafts and intermediate shafts with flange up to 1,980 mm and a length of 17,000 mm
Stainless steel round bars in 1.4462, 1.4418, and AISI 316L
Stainless steel and bronze liners with a diameter up to _970 mm and a length of 4,100 mm
Composite bearings with a diameter up to 955 mm
Aluminium bronze plates for blade repairs
Rudder Castings

Material on stock with european certificate

manufacturing components to rudder and propeller

Swift manufacturing solutions for the global maritime industry

We Offer Clear Manufacturing Advantages for Your New Shaft, Rudder Stock, or Other Parts:

• Short delivery times due to our in-house capacity and large raw material stock
• Machine capacity for large-scale and complex components
• Experienced staff Deep technical knowledge
• All materials delivered with class certificate
• Capacity for urgent repairs, including 24-hour service
• Quick response times – we typically quote within a few hours

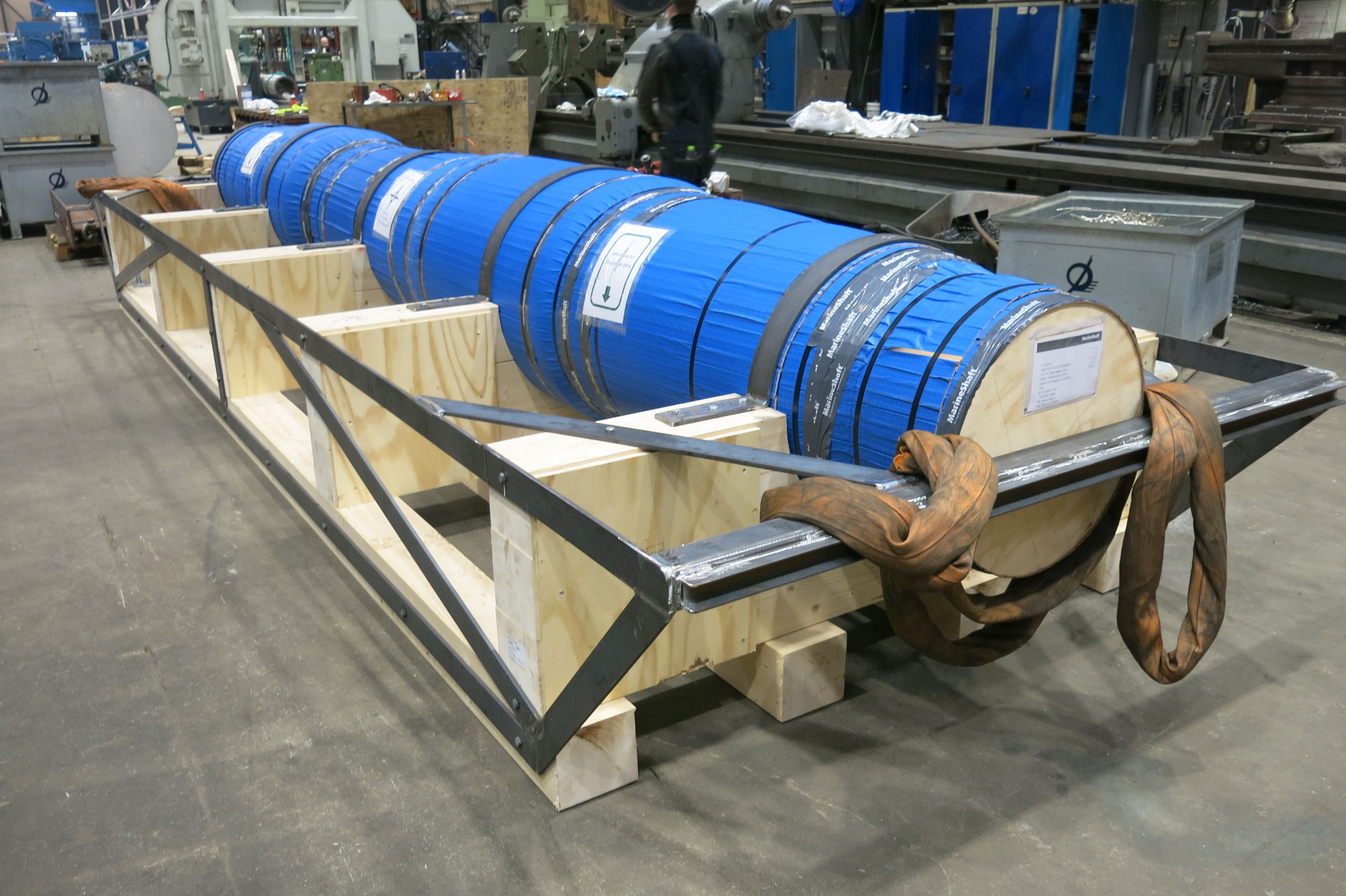

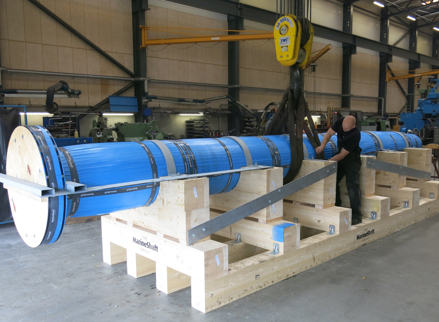

• Optional logistics support to ensure safe and timely delivery

Raw Materials for Direct Sale

If you need class-approved steel bars, plates, liners, or bearings with documented origin and fast delivery, we can supply from our extensive inventory.

Learn more

Case Study – Container Vessel suffered broken rudder stock

Urgent Rudder Stock Manufacturing Solved Within 15 Days

When a 294-meter Panamax container vessel suffered a broken rudder stock while waiting to berth in the US, the damage was severe. The rudder blade had dropped half a meter. The decision was made to avoid drydocking and complete an afloat repair instead.

We manufactured:

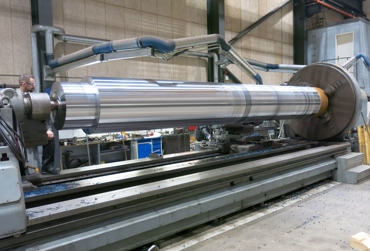

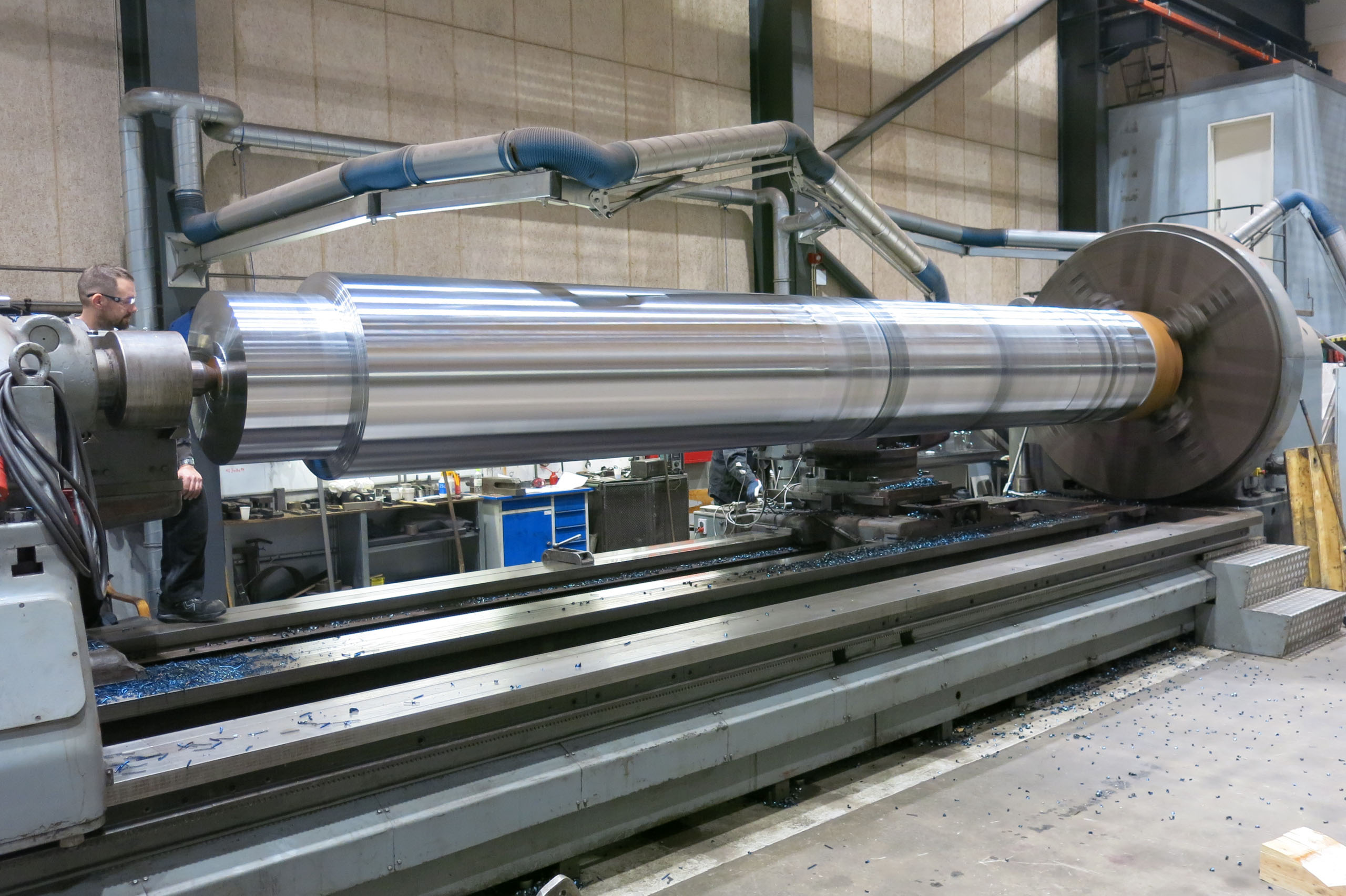

• New rudder stock Ø750 × 6600 mm
(C-Mn steel) with two shrink-fitted stainless-steel sleeves

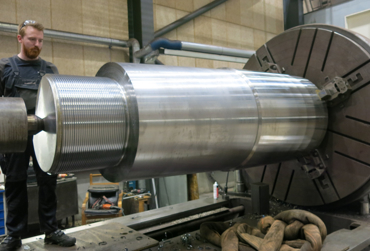

• New rudder pintle Ø900 × 2585 mm
(Mn steel) with one shrink-fitted stainless-steel sleeve
• Lower hydraulic nut for rudder stock
• New pintle nut

Thanks to our class-approved raw materials in stock, we could commit to a 15-day delivery.
The new rudder stock and pintle were machined with oversize for final machining on.site.

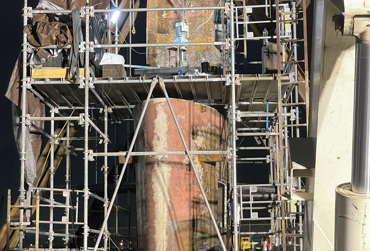

IN-SITU

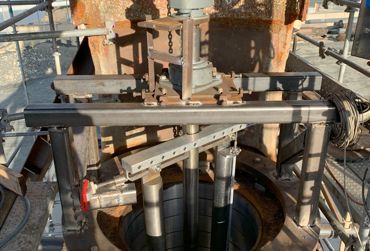

In addition to manufacturing, MarineShaft supplied alignment and in-situ machining as part of a complete rudder repair solution.

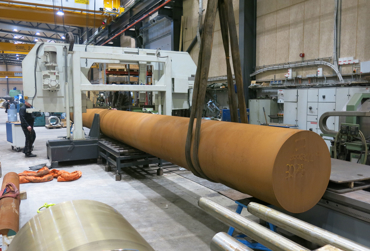

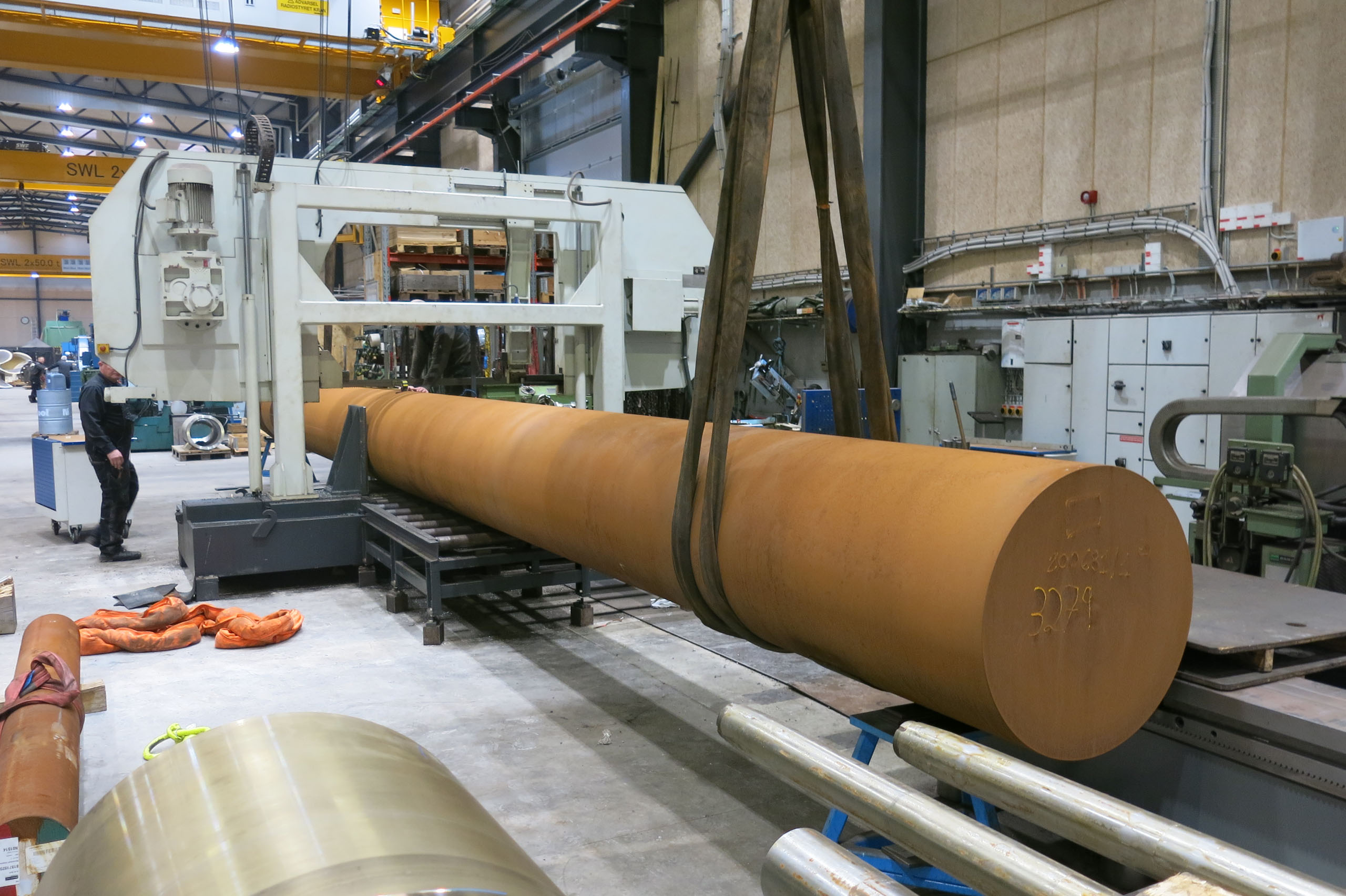

Manufacturing of rudder eqipment raw material in stock.jpg

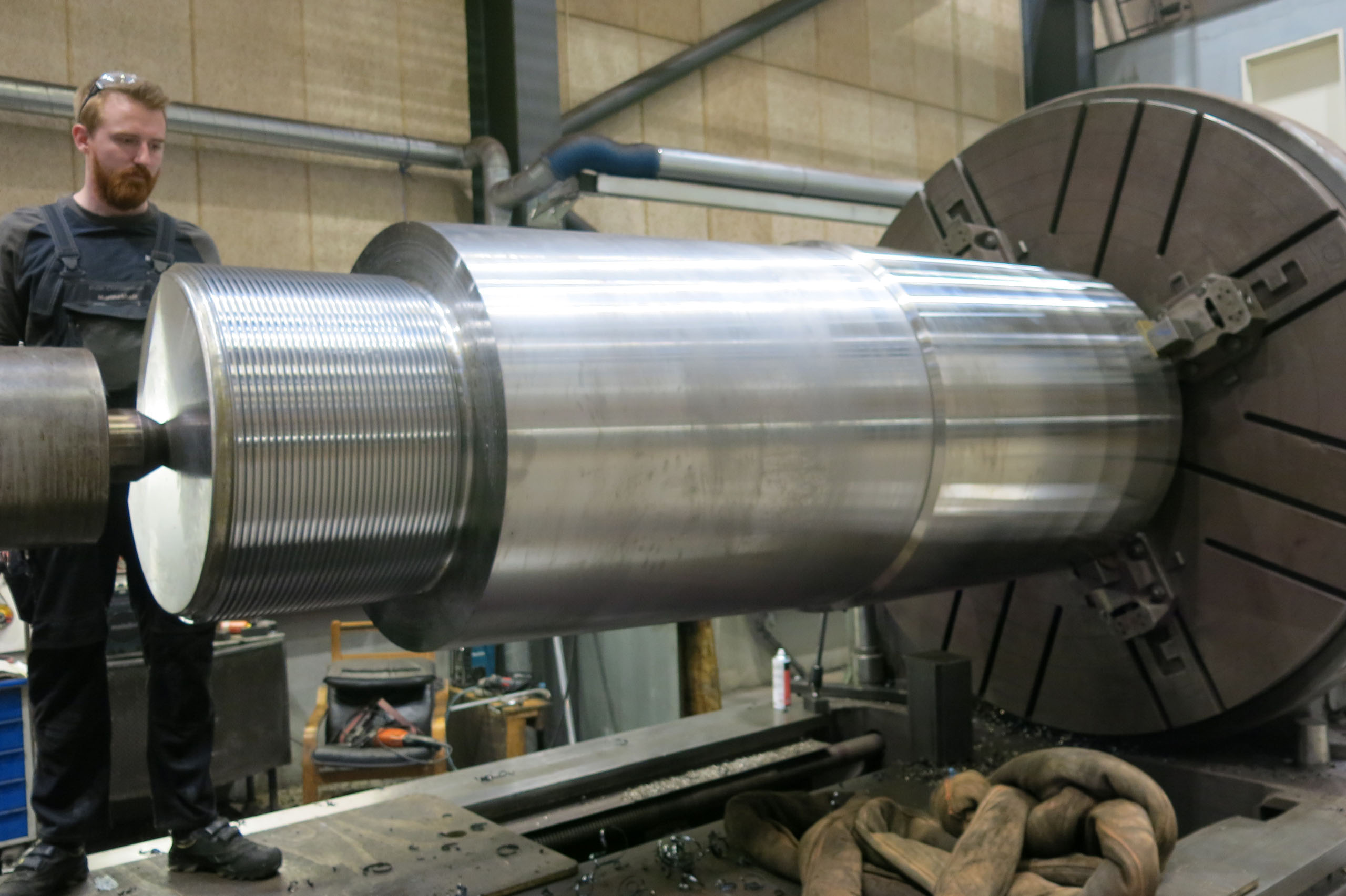

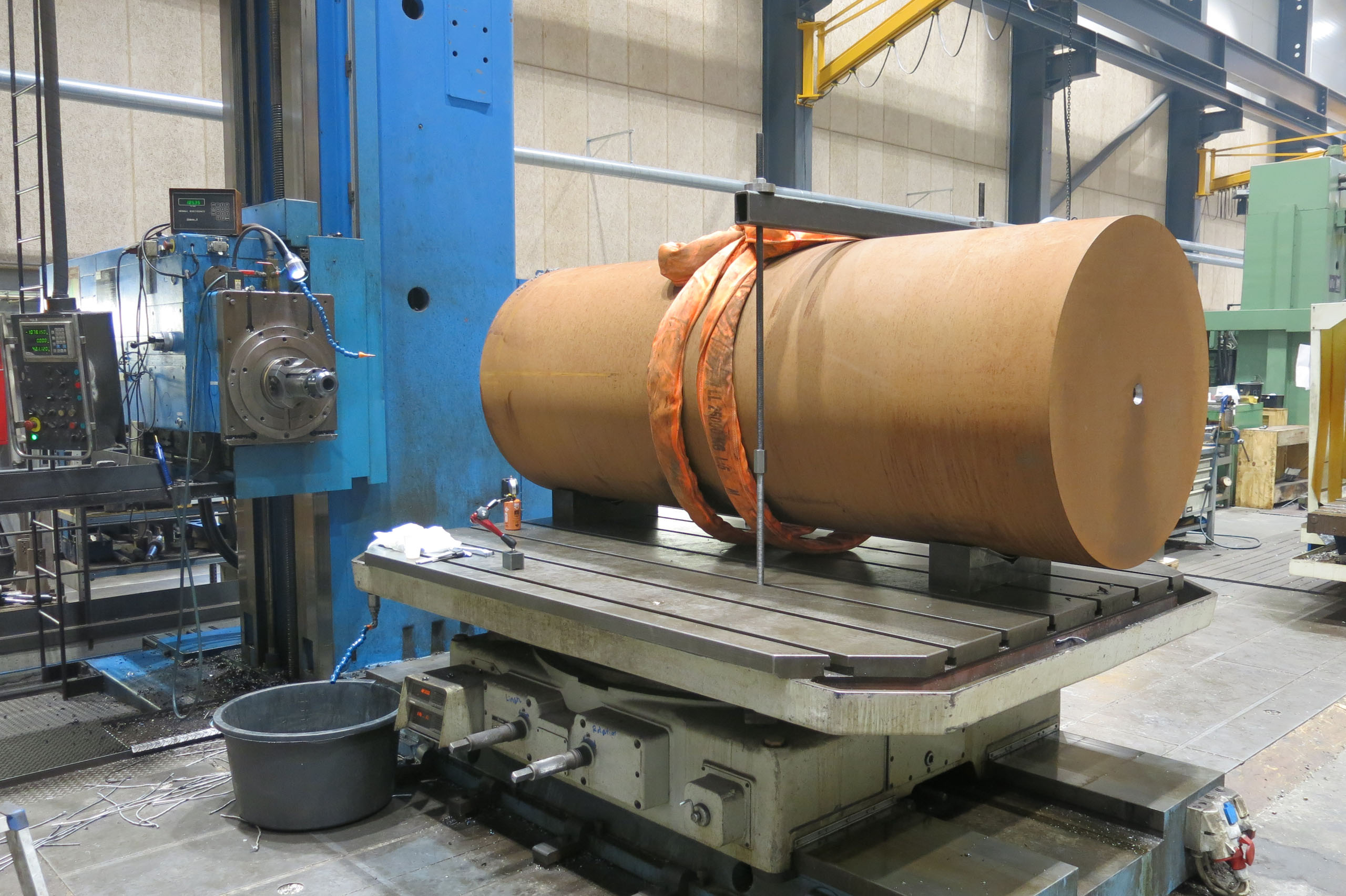

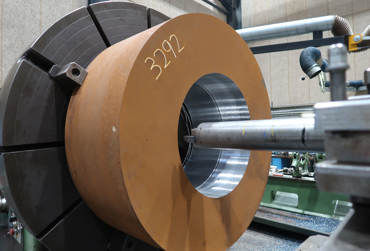

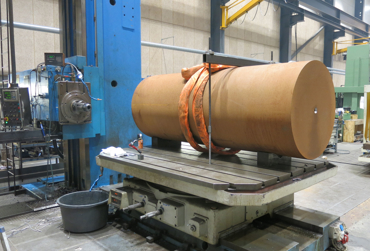

Manufacturing of rudder eqipment pintle.jpg

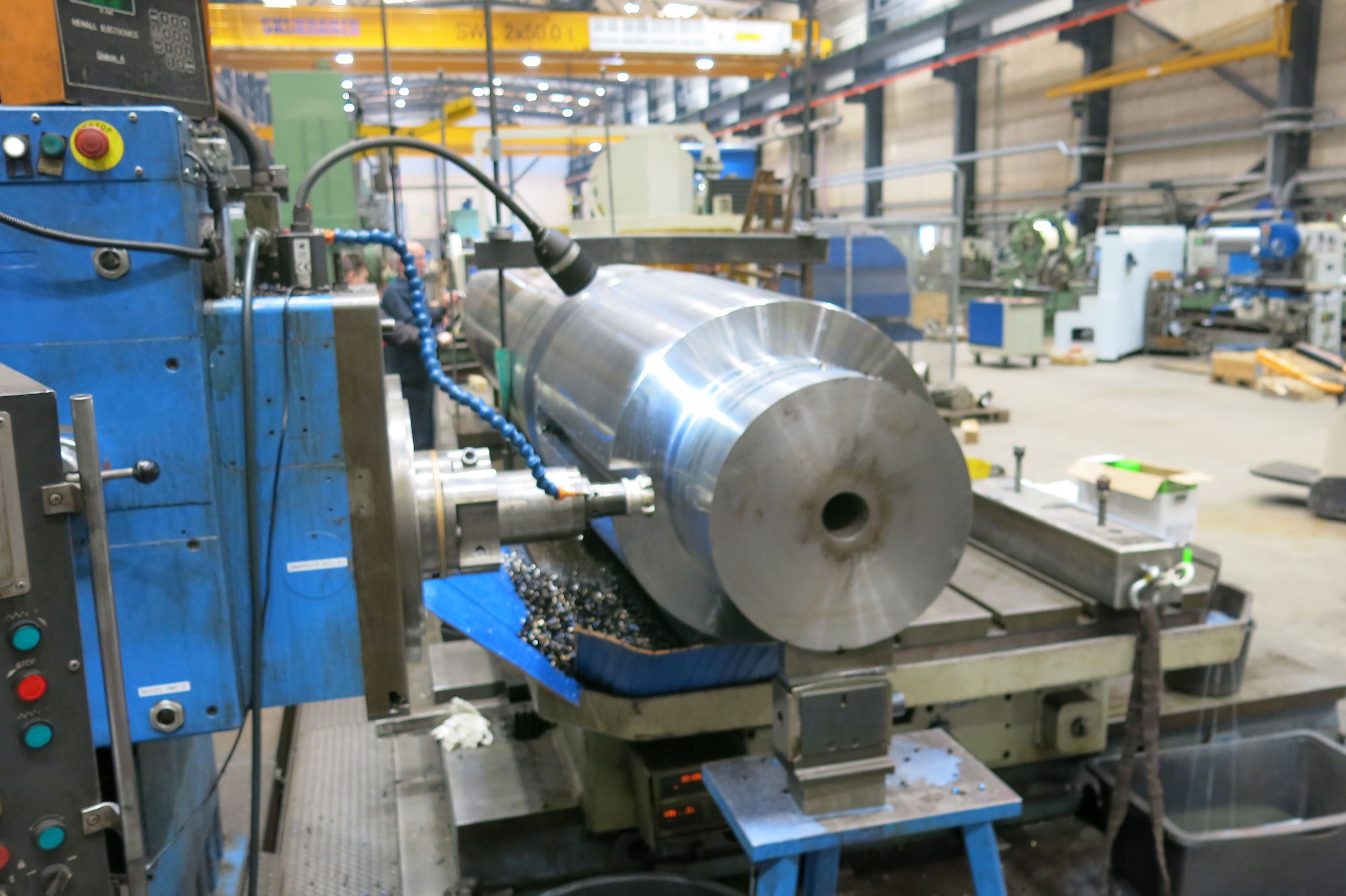

Manufacturing of rudder eqipment (8).jpg

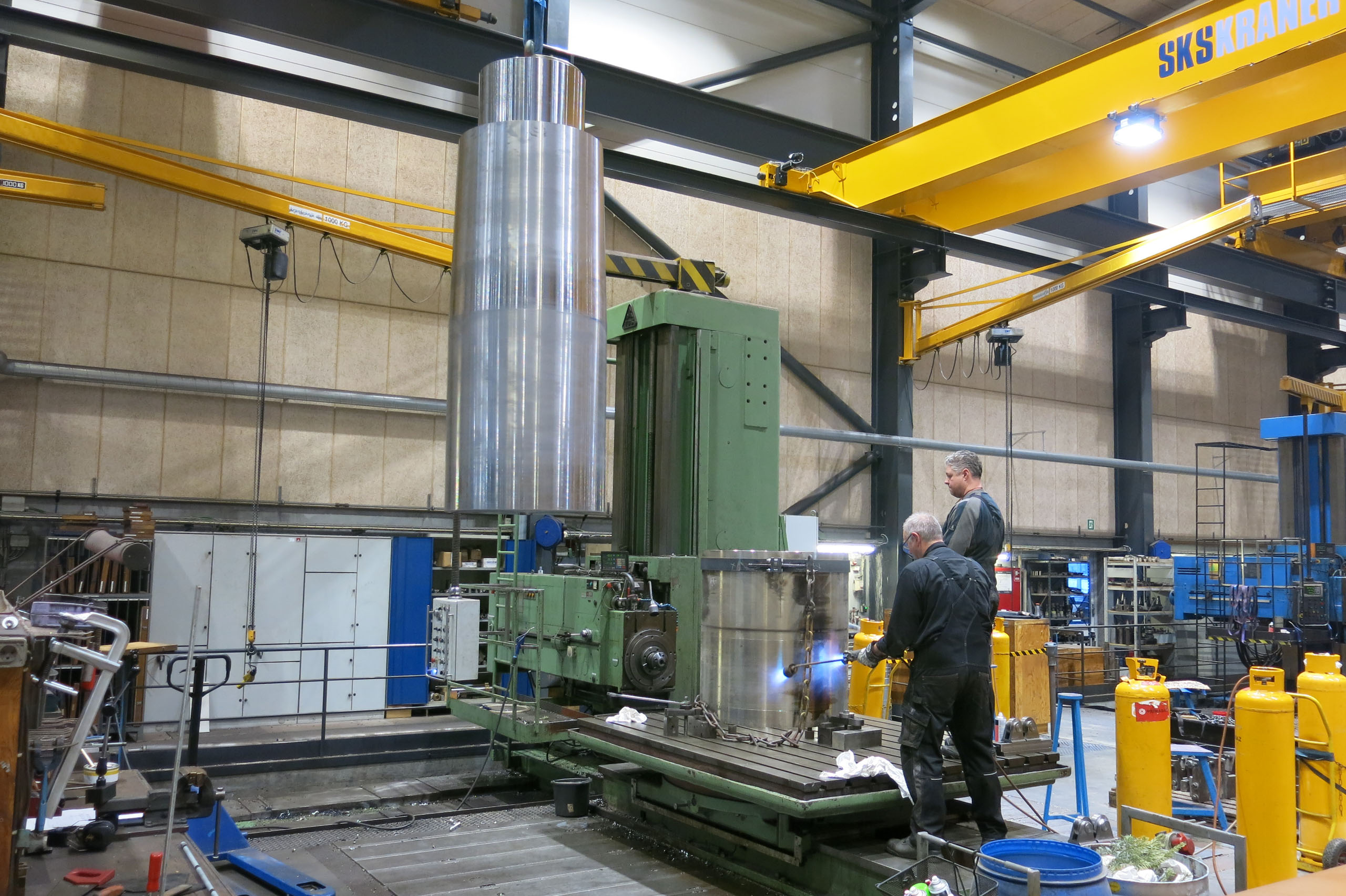

Manufacturing of rudder eqipment (9).jpg

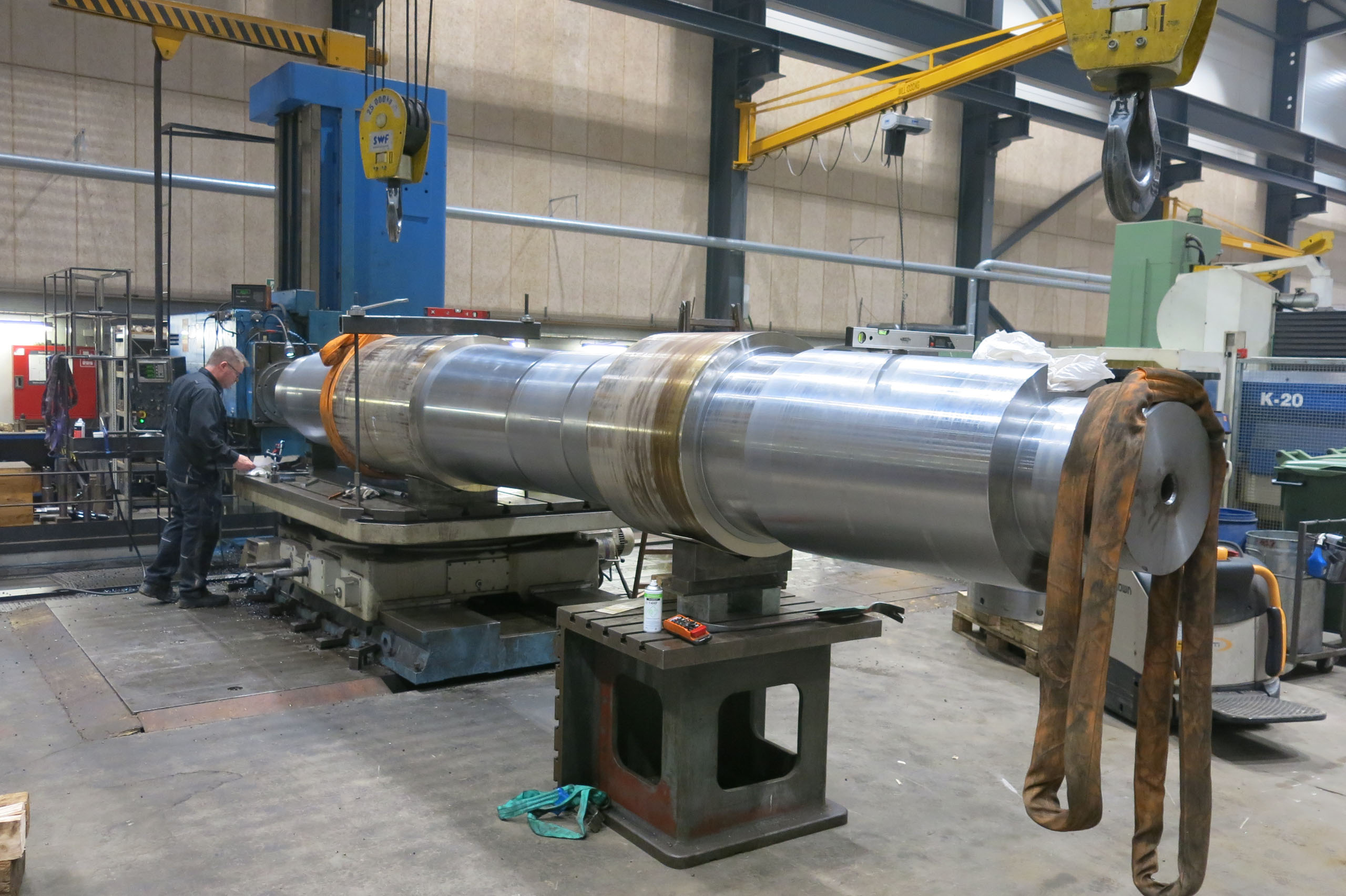

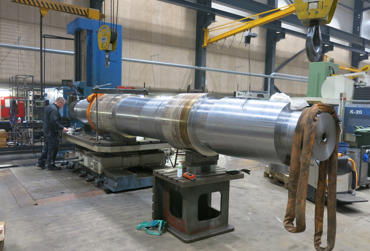

Manufacturing of rudder eqipment (10).jpg

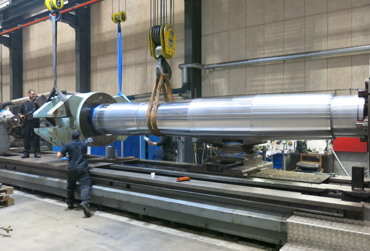

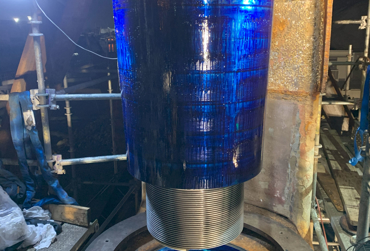

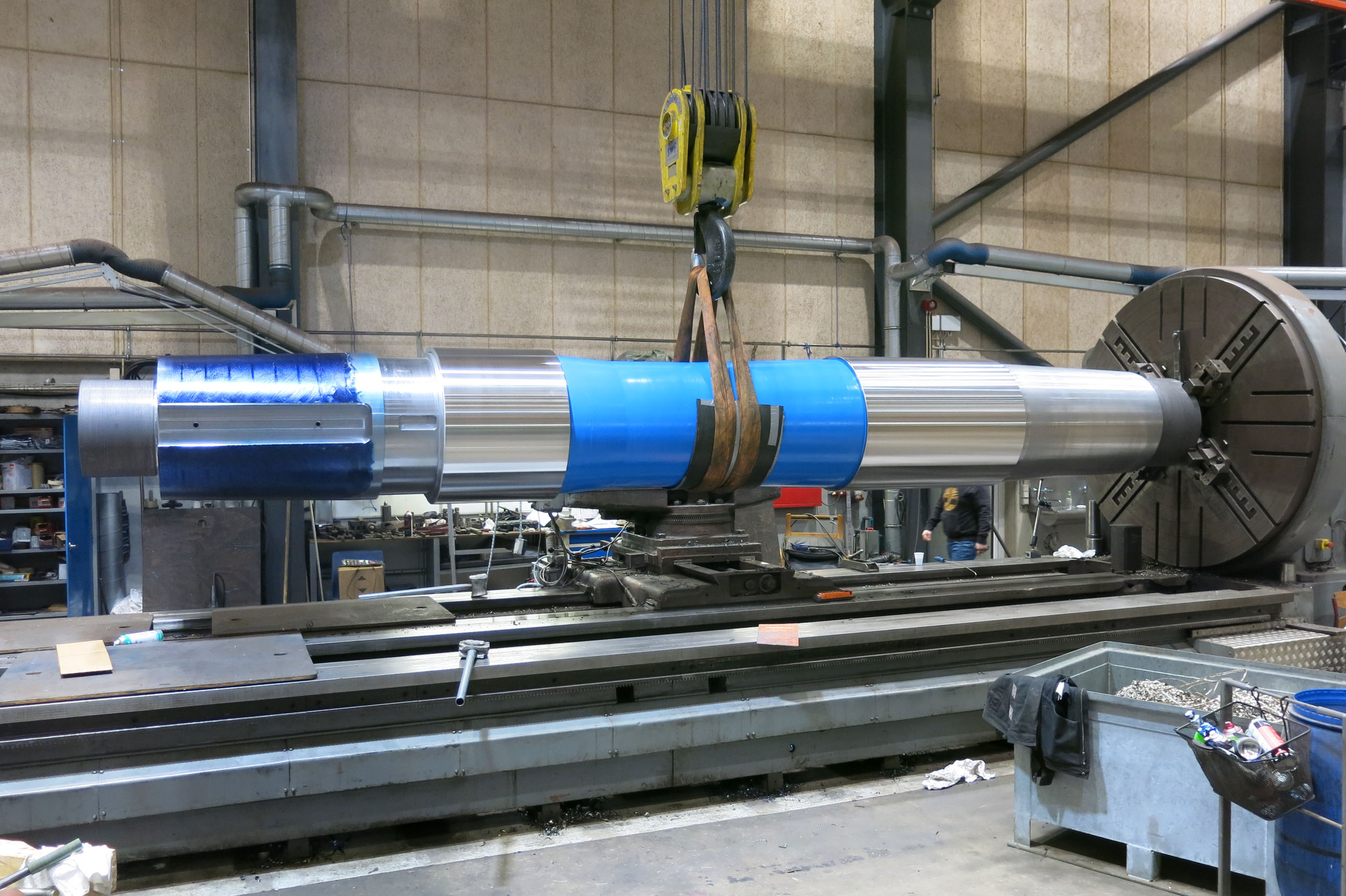

new rudder stock with perfect blue fit test.jpg

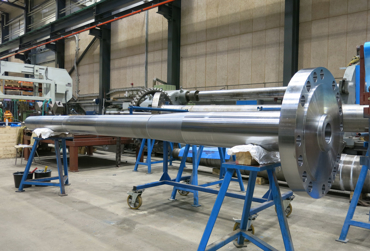

Case Study: New Propeller Shaft for M/V Oslo Bulk

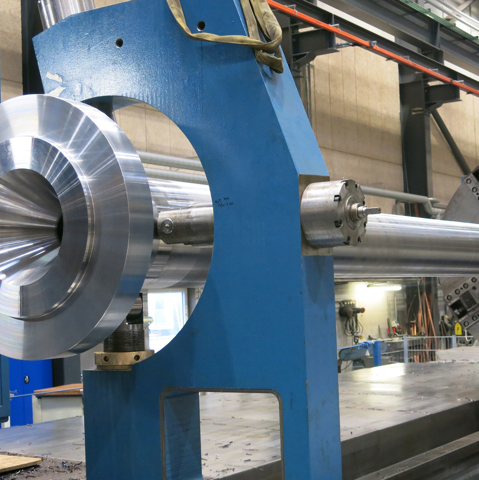

Efficient Propeller Shaft Manufacturing Completed in 10 Days

During docking in Turkey, the cargo vessel M/V Oslo Bulk 8 required an urgent replacement of her damaged propeller shaft. MarineShaft was entrusted with the job.

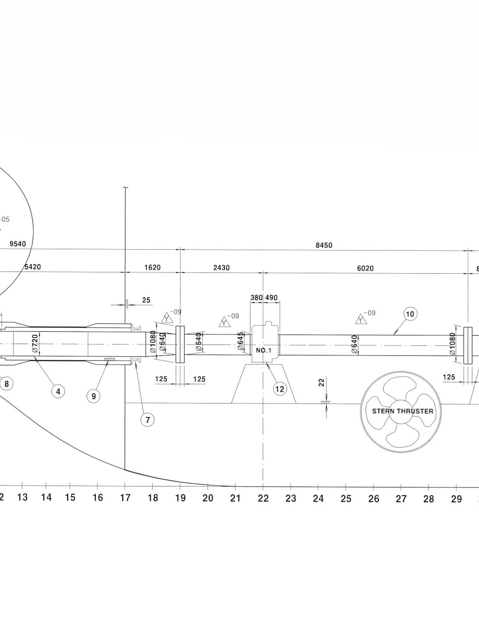

Our service engineer measured the old shaft on-site and we prepared a new drawing, which was approved by the classification society together with the selected material. Shaft size: Ø860/300 x 5005 mm.

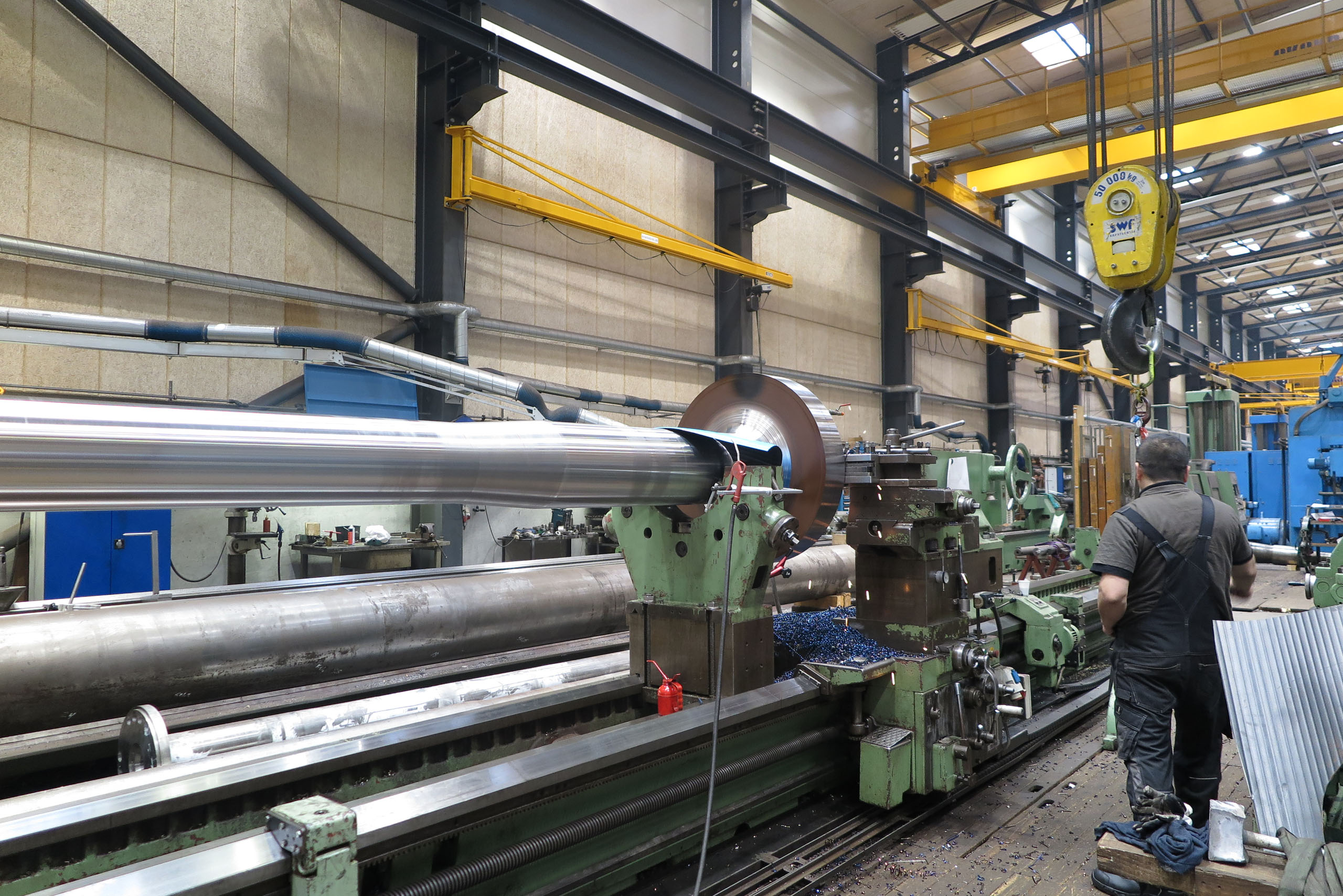

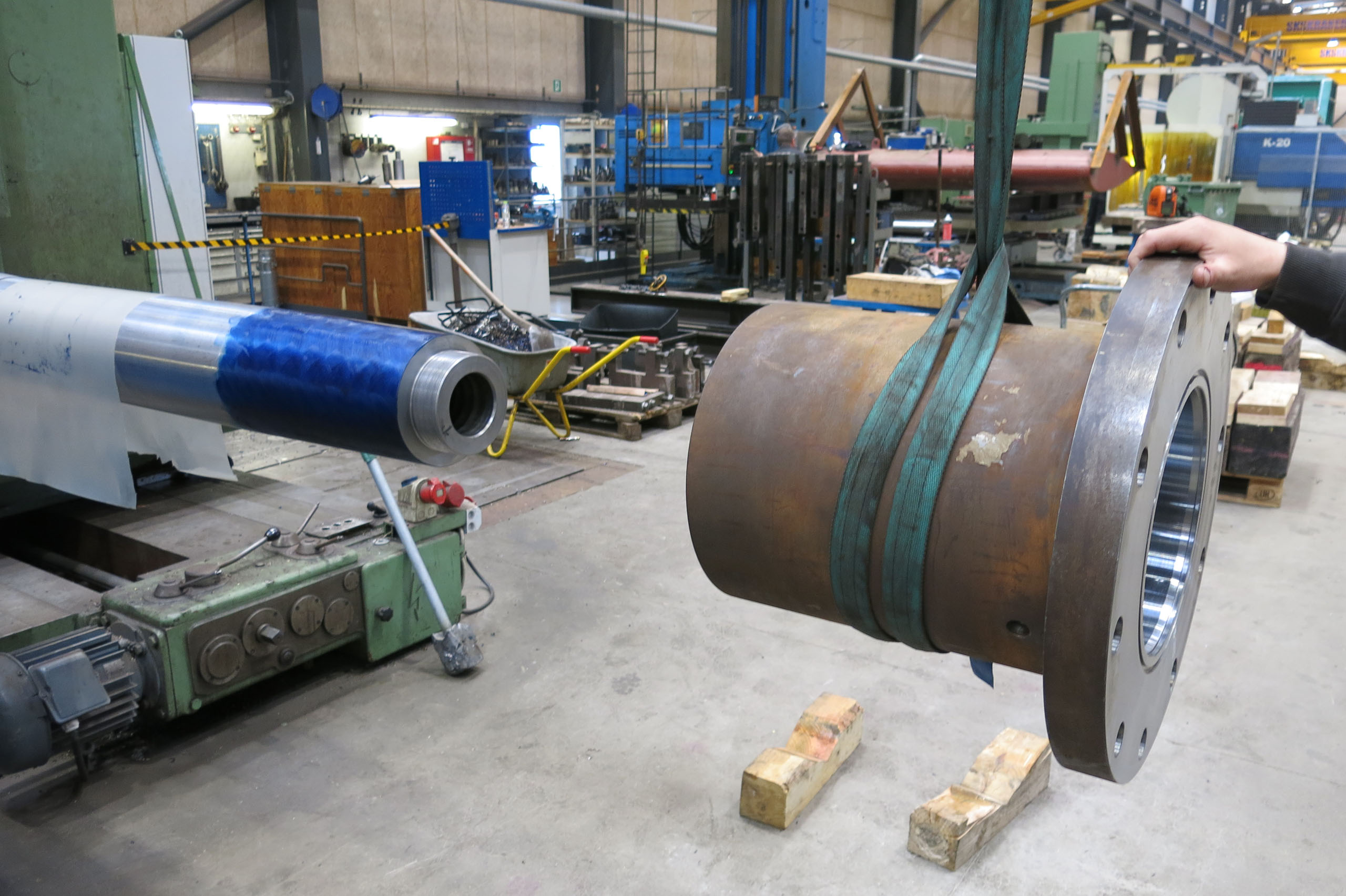

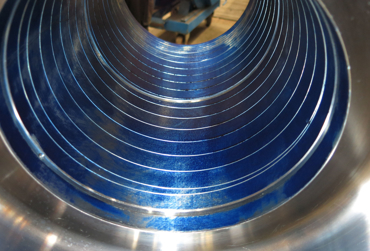

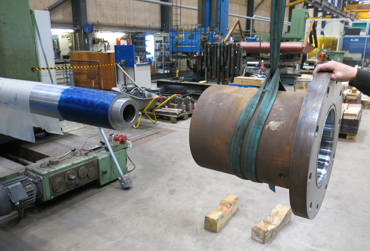

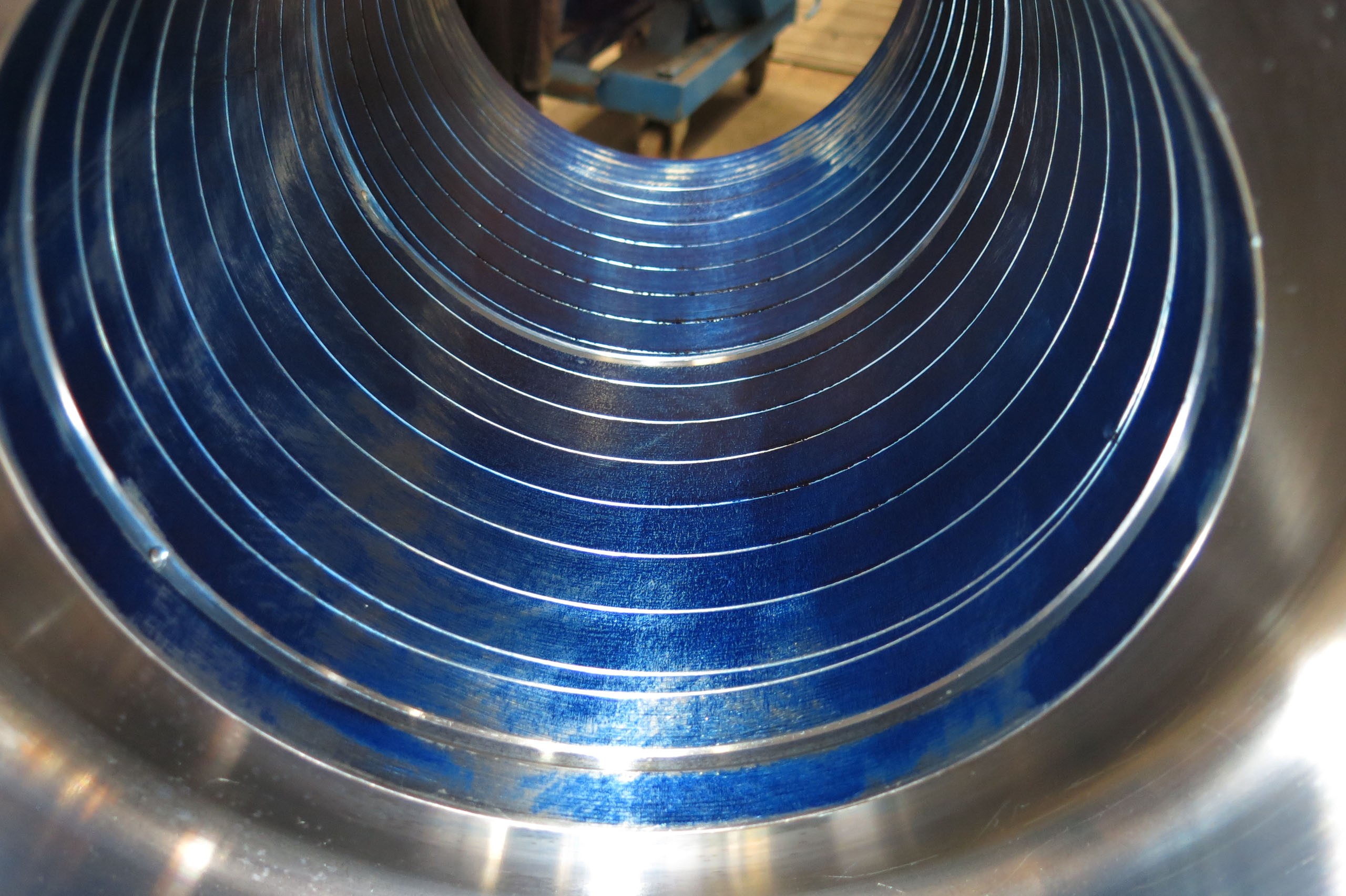

With the correct raw material already in stock, we began machining immediately after approval. The existing coupling was polished and blue fitted to the new shaft.

The finished shaft was air-freighted back to the vessel within only 10 days.
