Class-Approved Micro Welding

Precision Micro Welding Repairs With Very Low Heat Input

MarineShaft offers mobile micro welding solutions for precision repair of critical components – directly on-site. Our process is class-approved for cold welding on high-carbon materials, which are otherwise unsuitable for conventional welding techniques

How does Micro Welding work?

Micro welding is a cold process that deposits 0.2 mm of filler material per layer with pinpoint accuracy and minimal heat input

Our portable micro welding equipment is easily transported to locations worldwide. This allows us to conduct urgent repairs on-site, minimizing downtime and avoiding costly disassembly, shipping of heavy equipment, or replacement. Every repair follows strict class inspection protocols, ensuring full documentation and approval.

Micro Welding is ideal for:

Scratches and impact marks on shafts, journals, and critical surfaces
High-carbon and heat-sensitive materials
Situations requiring minimal thermal influence
Urgent repairs where mobility is essential

Benefits of Micro Welding over Traditional Welding

Micro welding offers several advantages over conventional welding methods, making it an ideal solution for high-precision marine repairs

At MarineShaft, we use this advanced technique to restore surfaces with scratches, impact marks, or localized wear, especially in areas sensitive to heat and deformation.

Minimal Heat Input

Precision and Control

With impulses as small as 0.2 mm and controlled currents up to 1650 amperes, micro welding enables us to achieve extremely precise results. The filler metal is fused with the base material in milliseconds, ensuring strong adhesion without affecting surrounding structures.

No need for Machining

On-Site Capability

Class-Approved and Environmentally Considerate

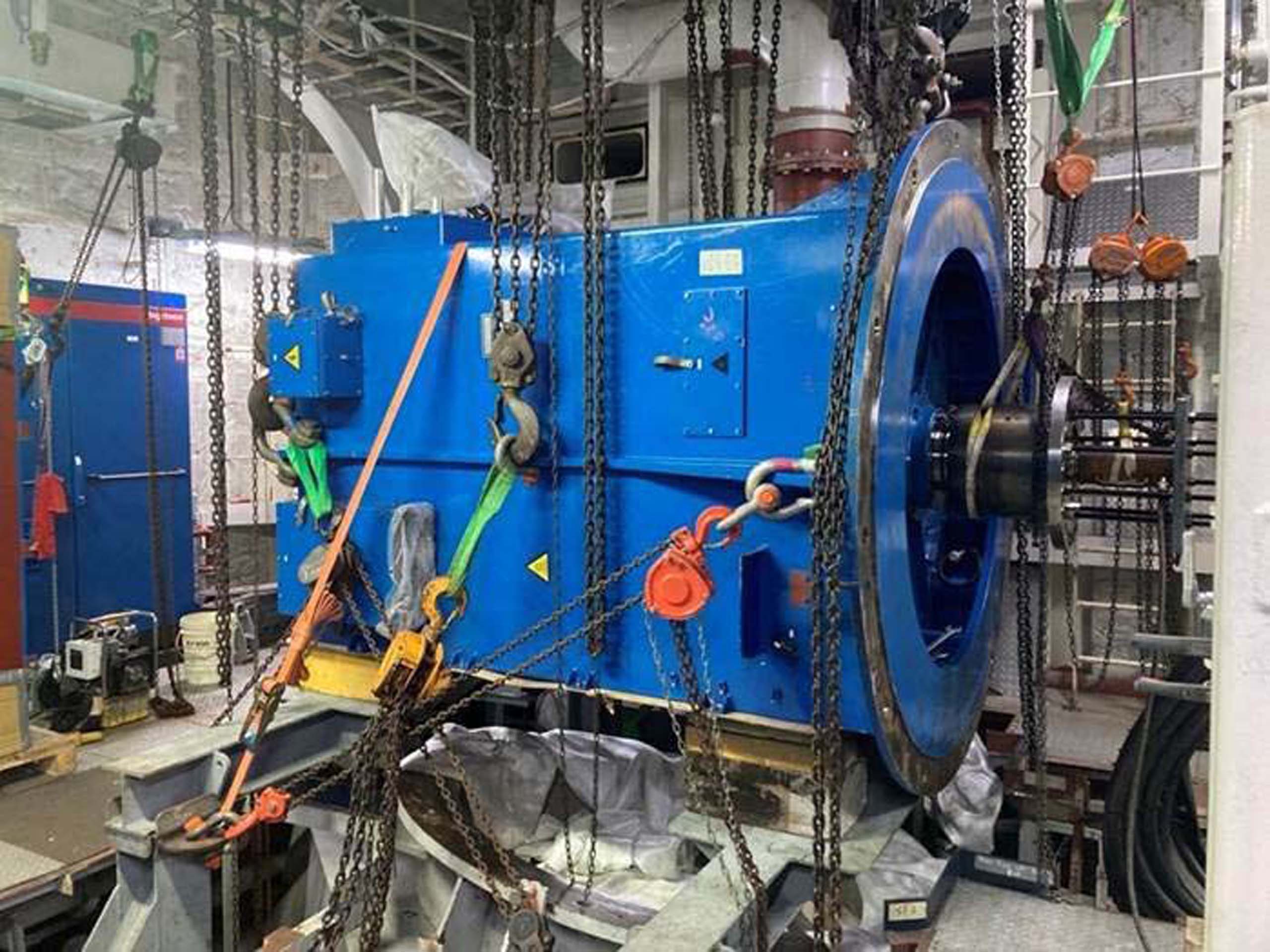

Case study: Micro welding In-Situ on Rotor Shaft

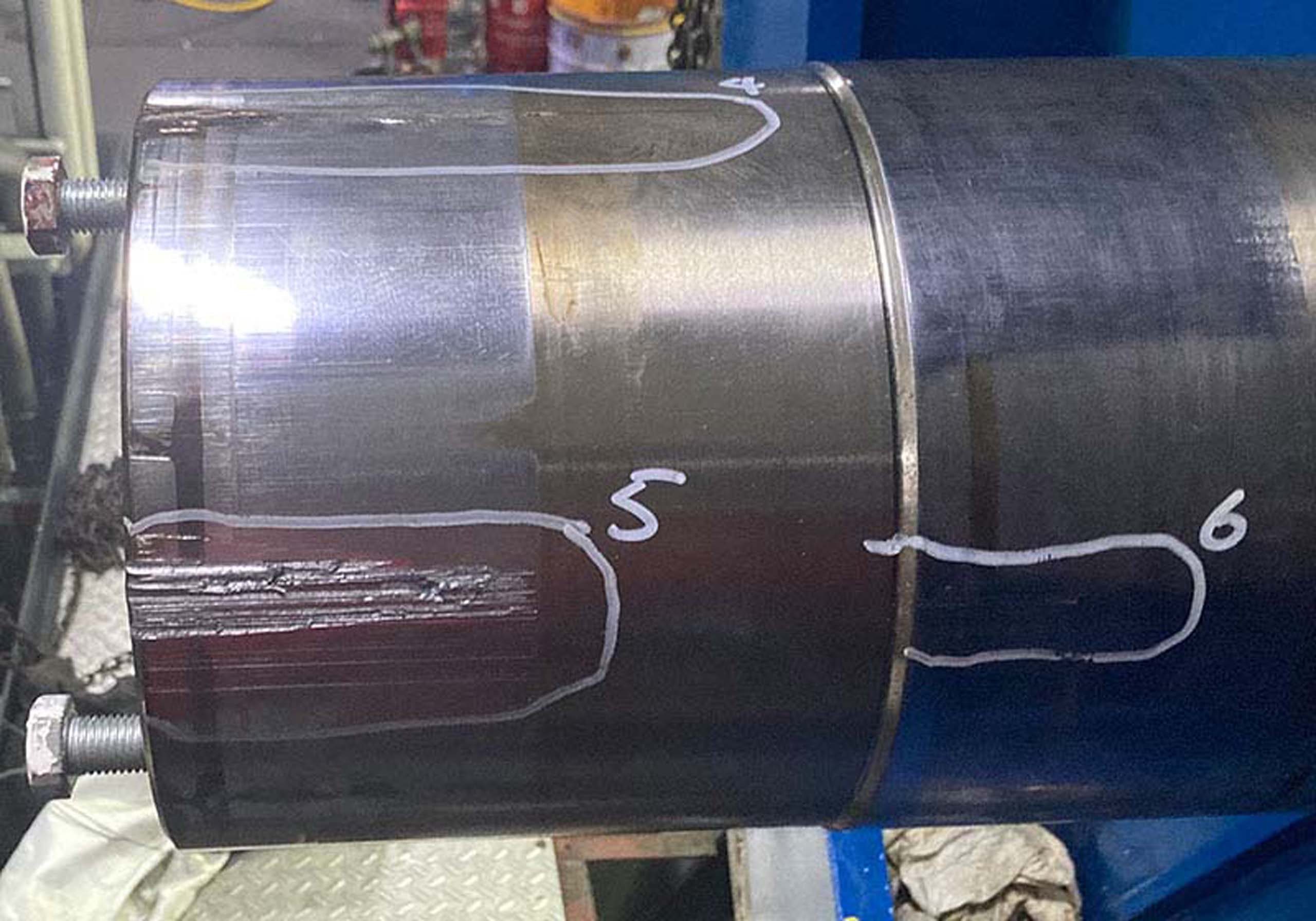

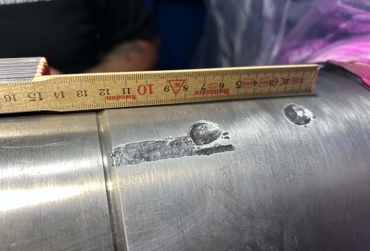

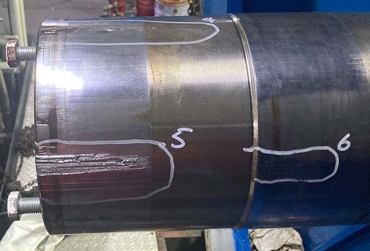

Scratches and Impact Marks After Coupling Removal

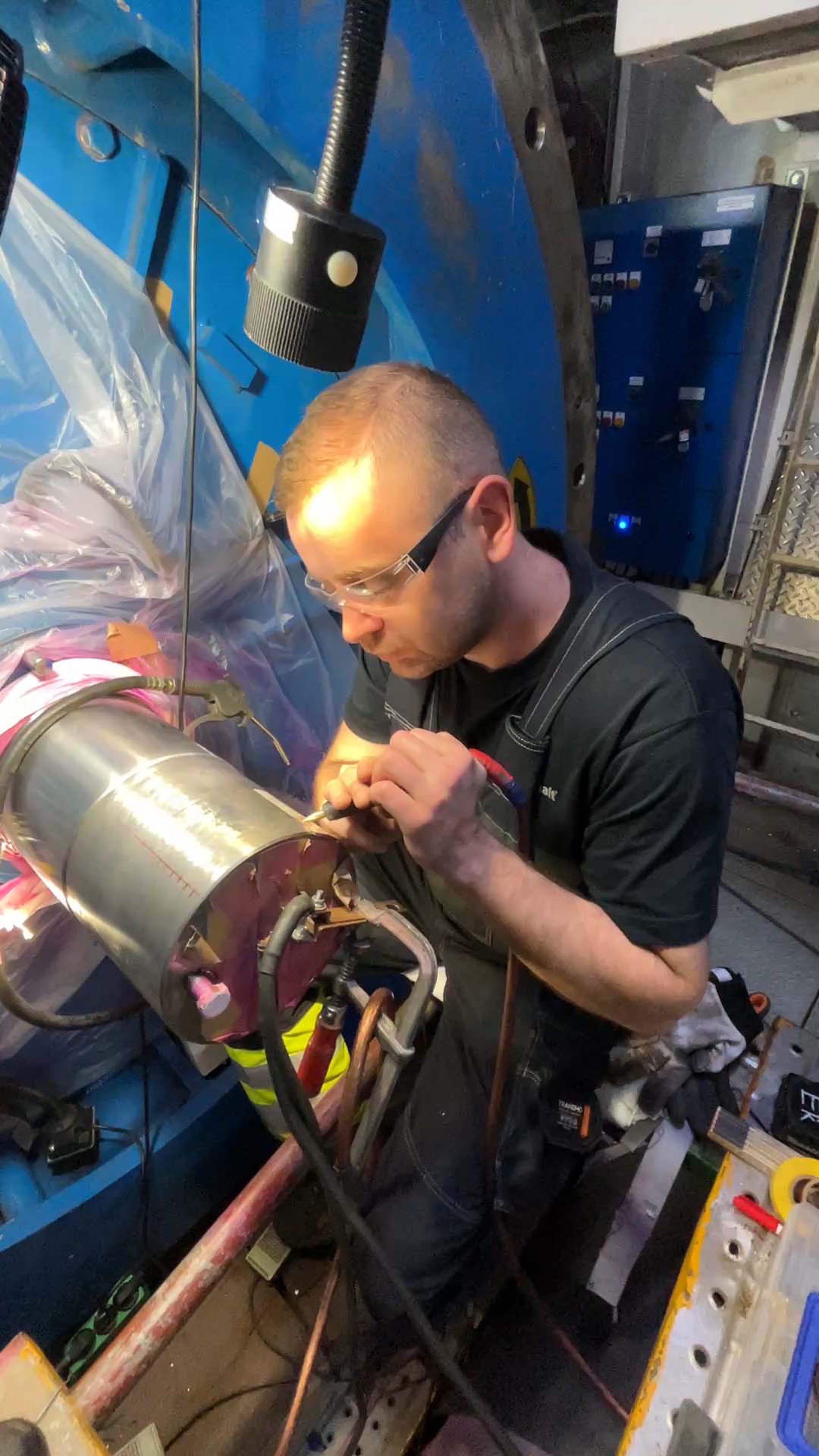

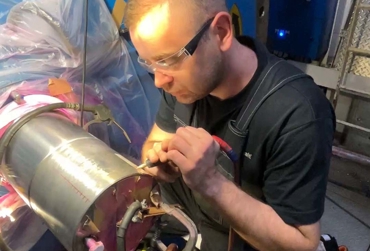

We were contacted to provide an in-situ repair solution on a rotor shaft. We utilized our mobile welding equipment that is fully class-approved for cold welding on high-carbon, typically non-weldable components.

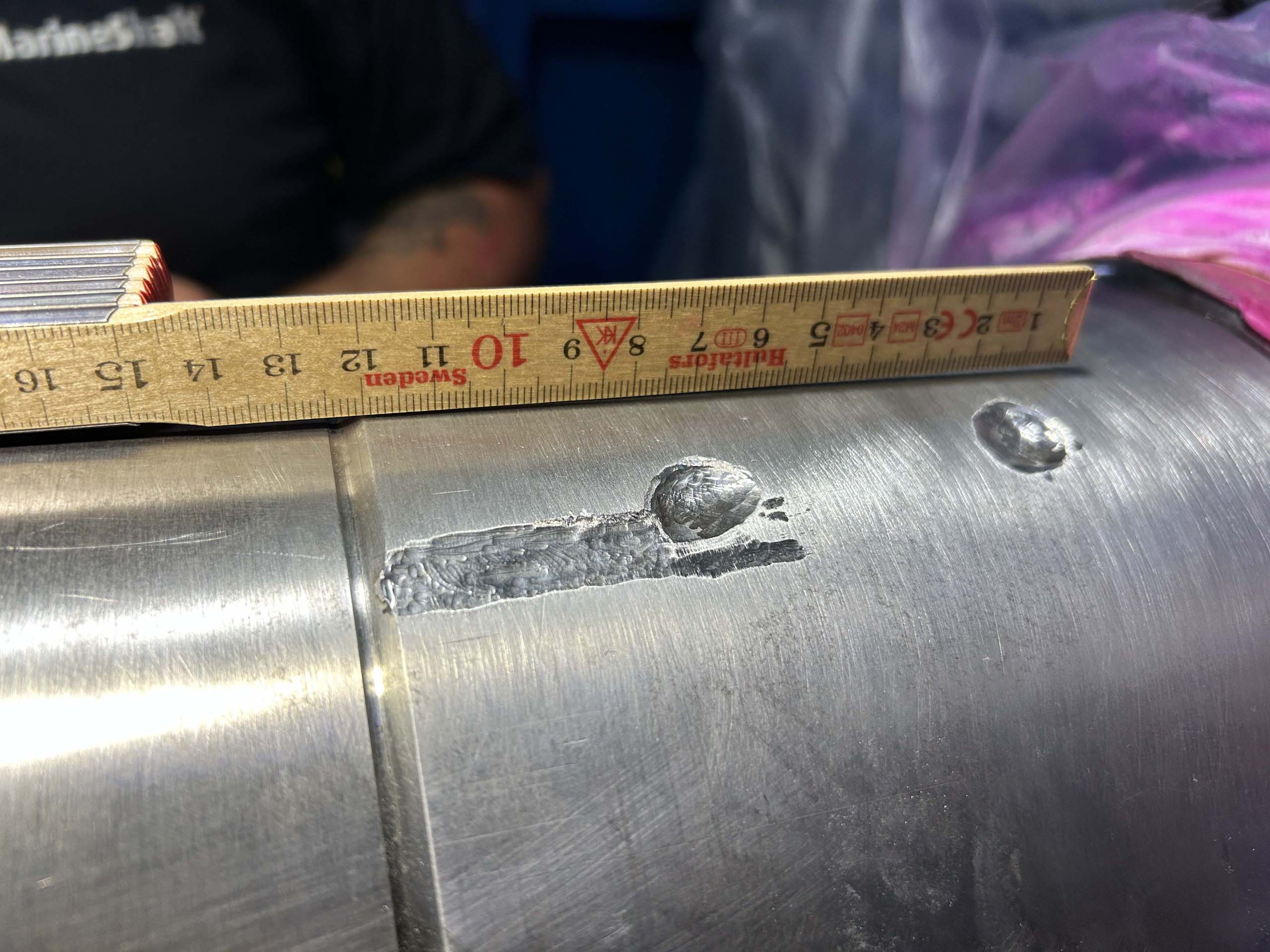

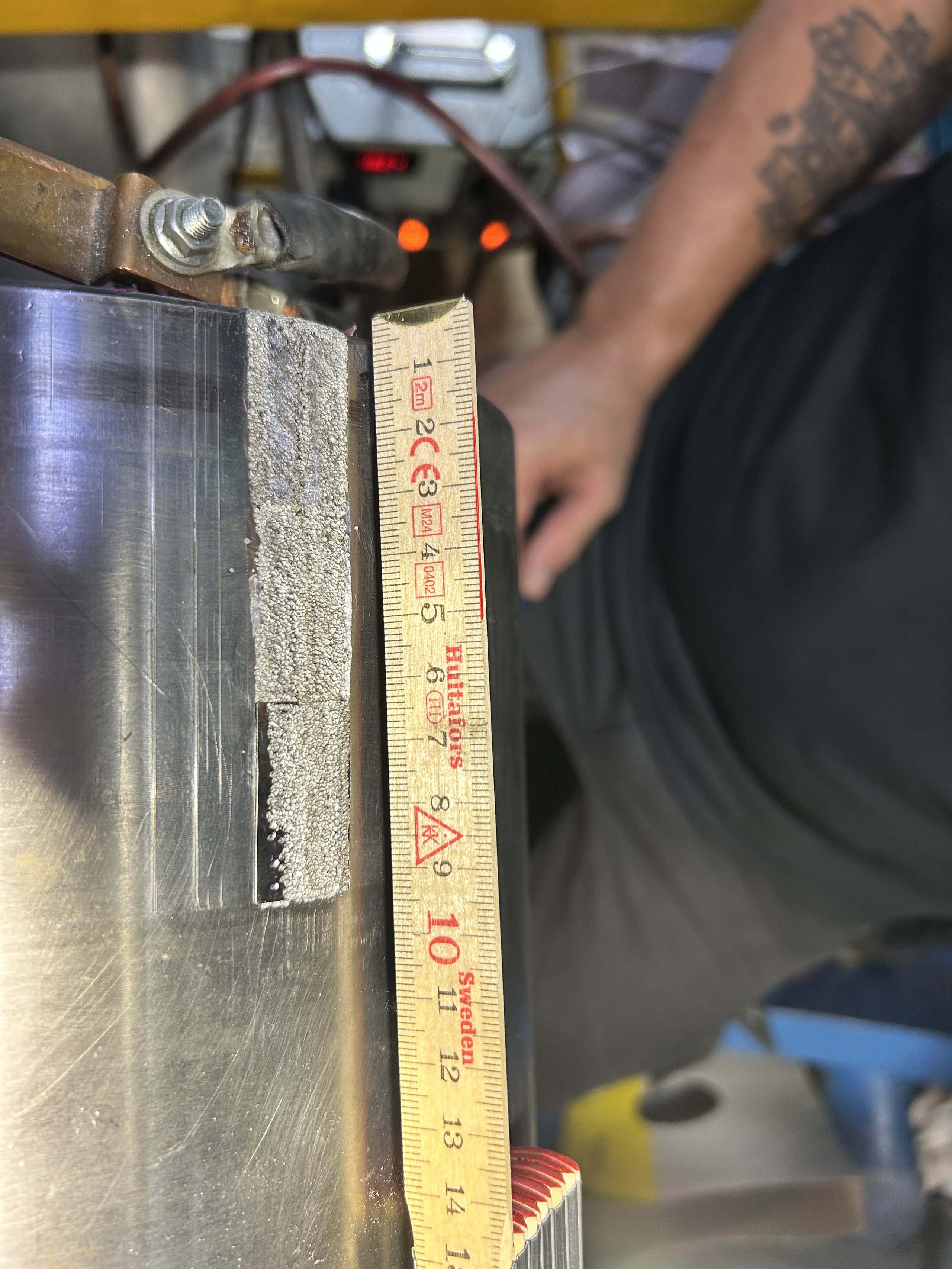

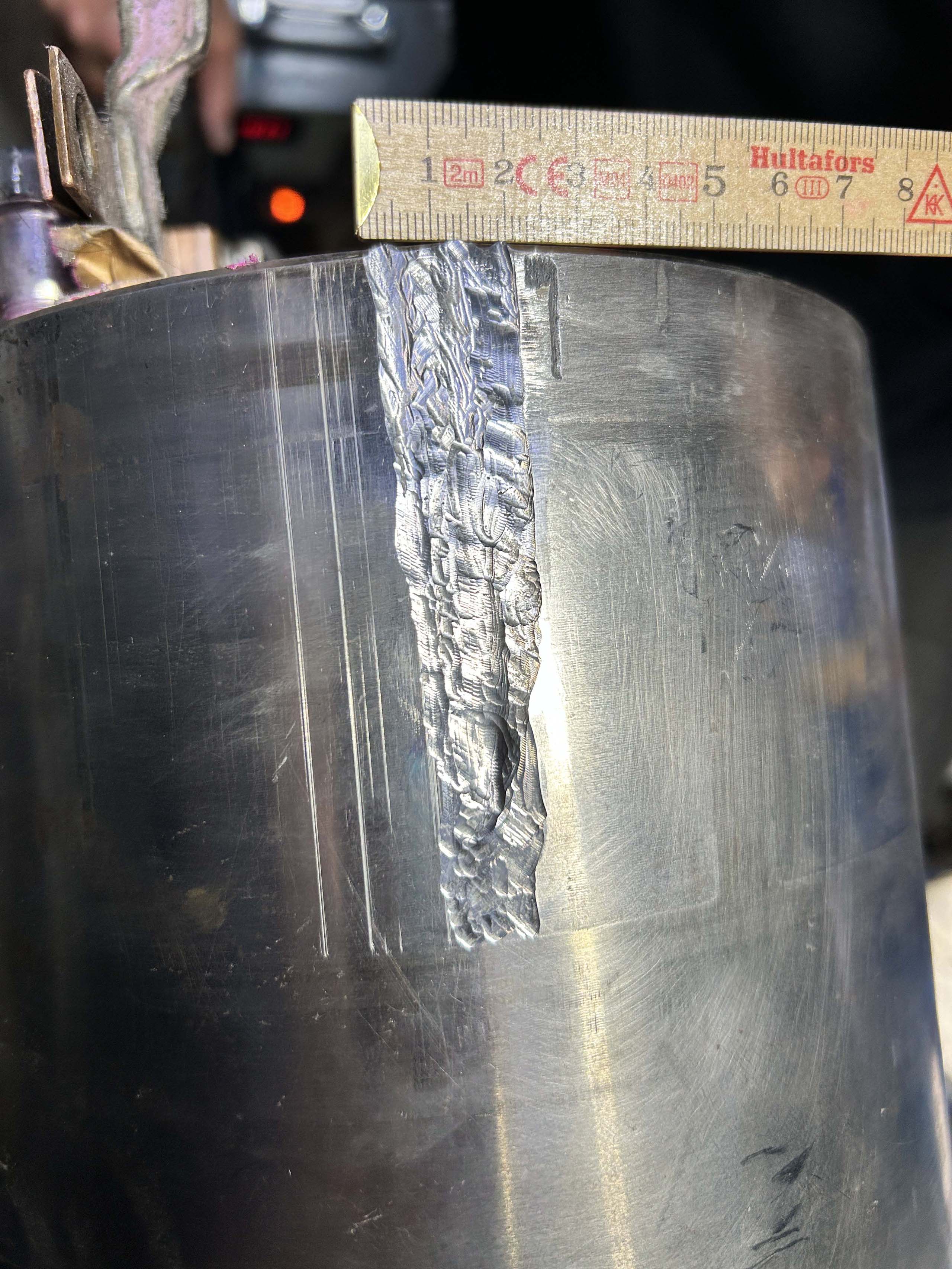

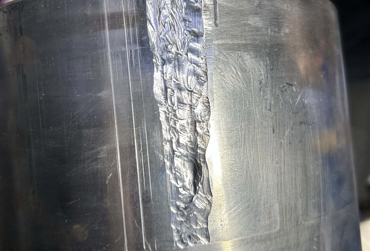

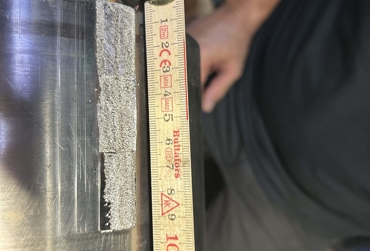

Micro welding allows for the application of metal through low-punctual welding, attaching a metal plate or wire to the component. This repair method is fully class-approved, with each welding layer adding 0.2 mm of material.

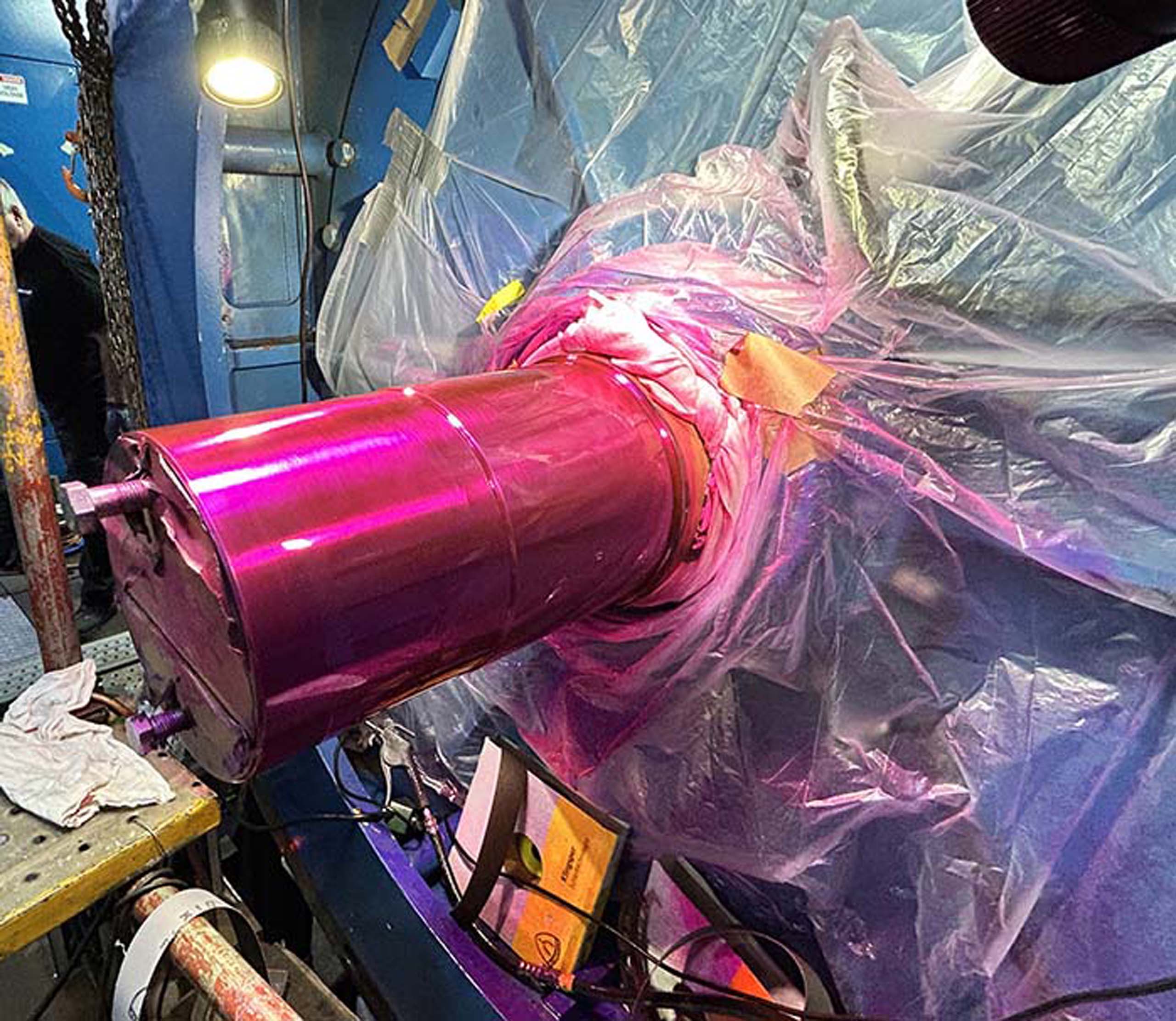

Before starting, we ground and polished the damaged area to ensure a clean surface. We then performed a liquid penetrant inspection (LPI) to confirm there were no undetected cracks deeper within the shaft.

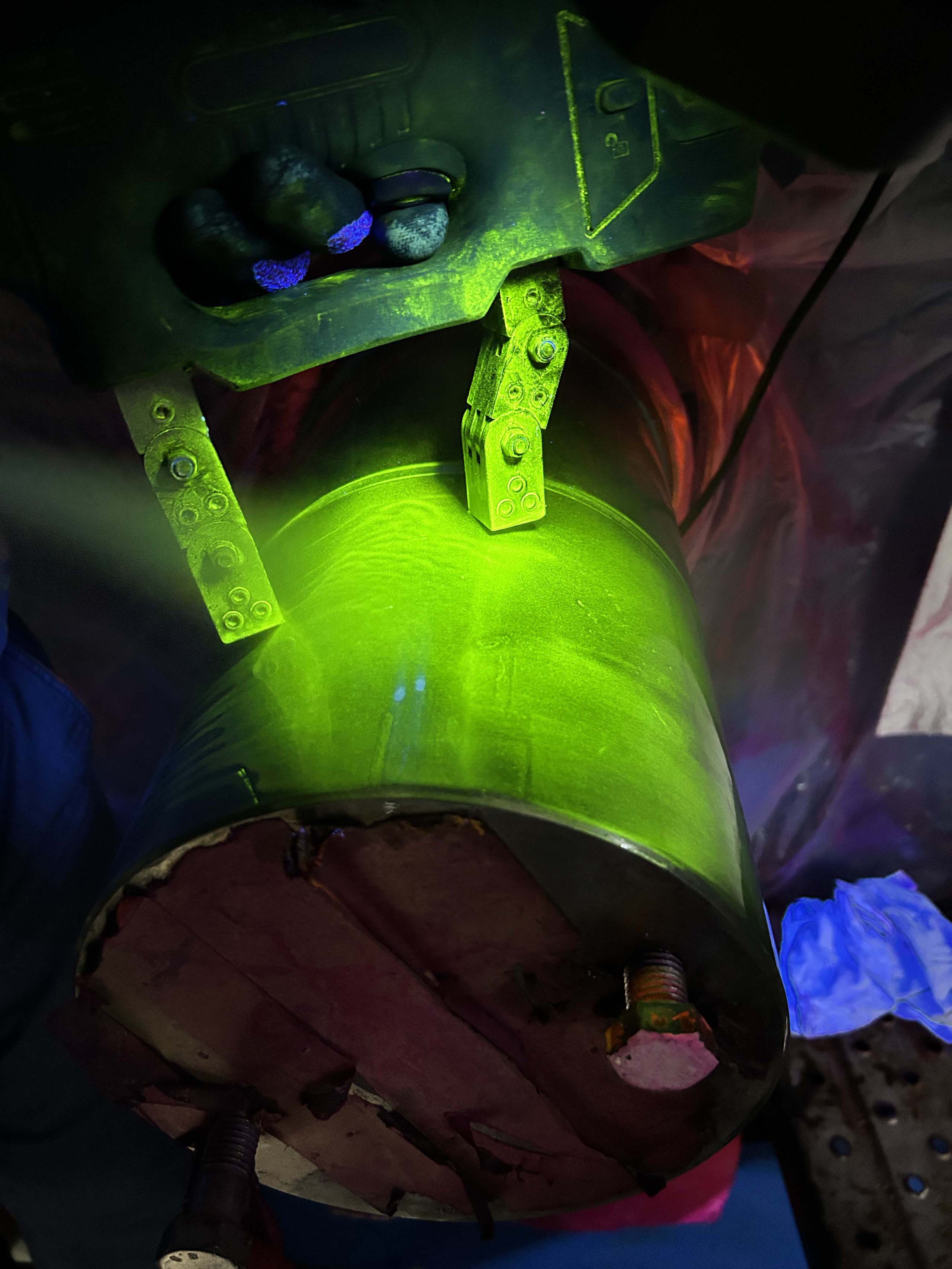

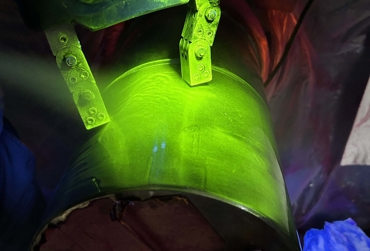

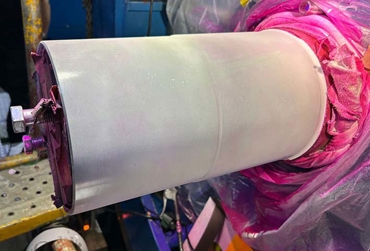

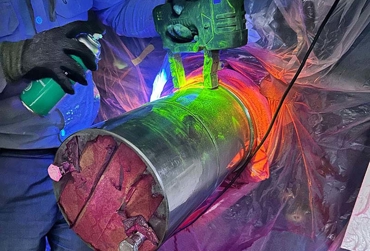

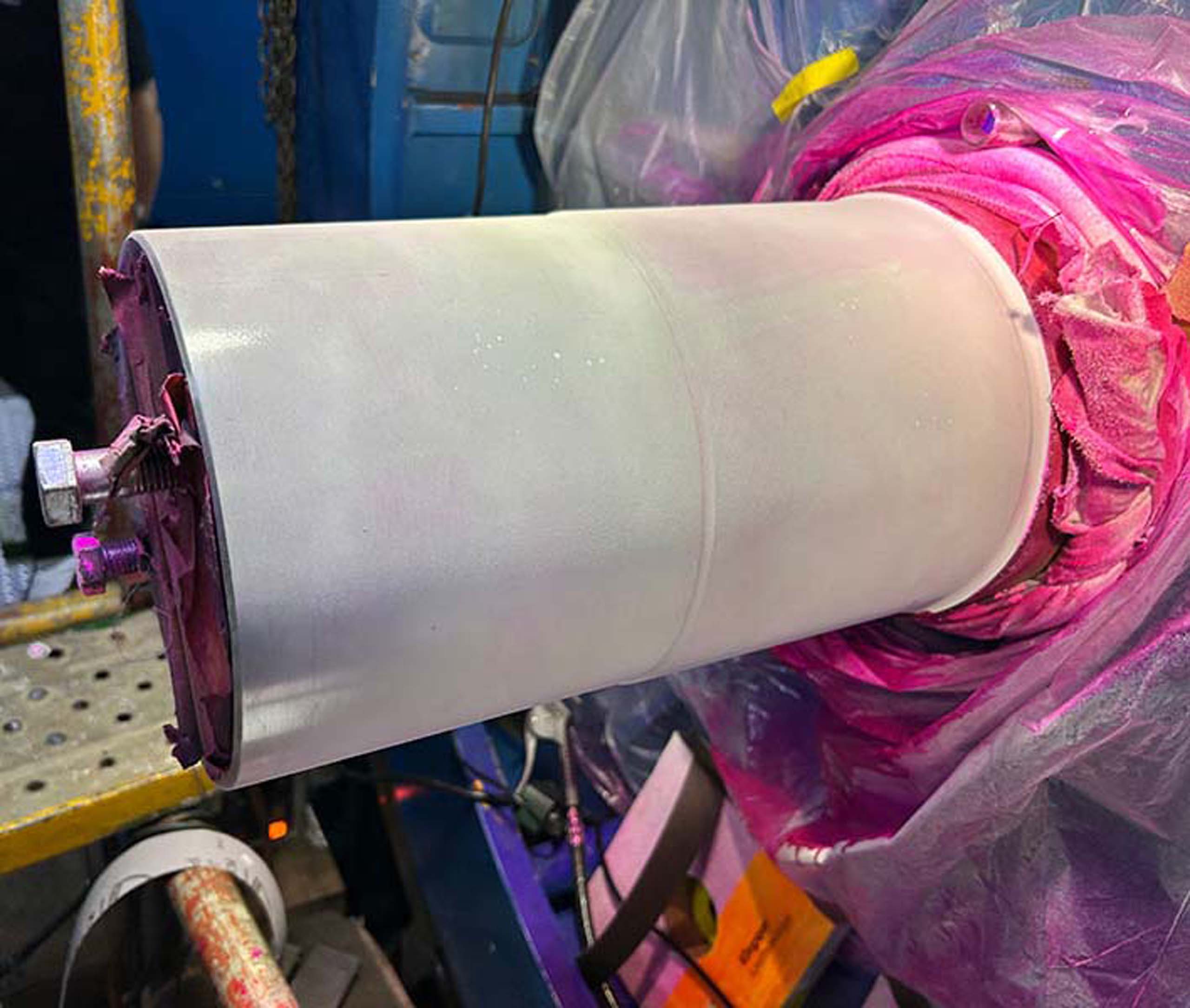

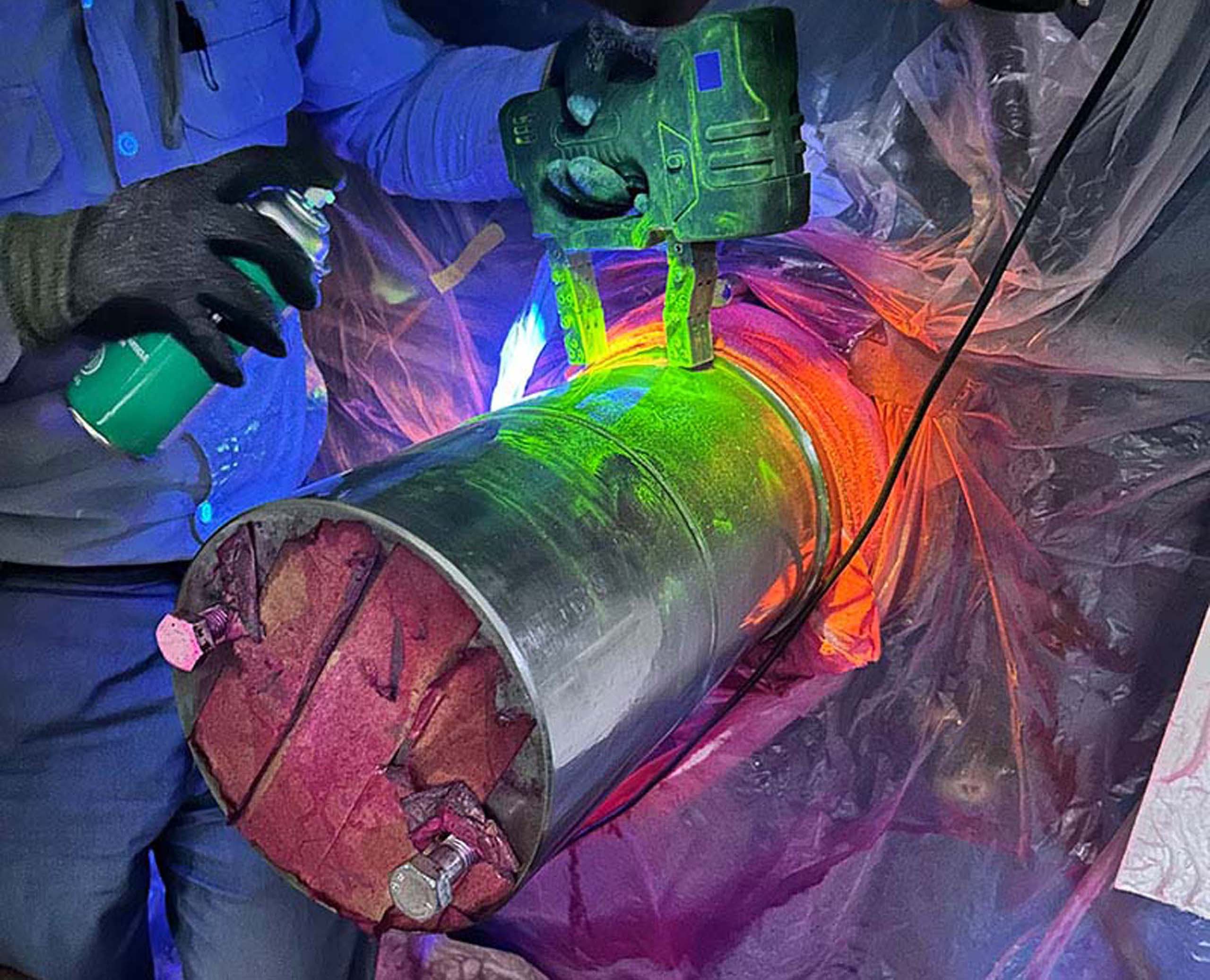

After the micro welding process, the repaired areas were hand-polished, followed by another LPI to verify the quality of the welding. Finally, a third-party company conducted a Magnetic Particle Inspection (MPI) in accordance with class regulations to ensure the repair met all standards.

The entire repair process was completed within 8 working days, enabling the vessel to resume normal operations without further delay.
