Expert Laser Cladding Repair Services for Marine Components

Laser Cladding for Extended Service Life

At MarineShaft, we continuously invest in advanced repair technologies to provide faster, high-quality, and class-approved solutions. Laser cladding is a precision welding technique that restores damaged components efficiently and prolongs their service life — often eliminating the need for replacement

A Technological Edge in Marine Repair

Laser Cladding - Fast and Cost-Effective

Breakdowns, wear, and corrosion can severely damage critical marine parts. With our class-approved laser cladding process, many of these components can be fully restored.

We have used this technique for years at our urgent repair workshop. Today, our expanded laser cladding capacity and robotic equipment offer faster turnaround and enhanced repair options for a wide range of shaft line and propulsion components.

Double up and twice as fast with Laser Cladding

Why Laser Cladding?

Laser Cladding Offers Distinct Advantages over Conventional Welding

Minimal heat input - just one tenth of traditional welding
No post-weld heat treatment required
100% metallurgical bonding of filler metal
Minimal distortion of the base material
Shorter repair time - typically 2-3 days saved

It allows us to restore components that would otherwise be rejected for repair under classification society regulations

Approved - Proven - Preferred

Why Shipowners Worldwide Trust Our Laser Cladding Solutions?

Certified Across Materials

MarineShaft holds class approvals for laser cladding on various material such as stainless steel, carbon steel, bronze and cast iron. Commonly used powders include Stellite 21, Inconel 625, bronze, white metal, and aluminium—selected based on the base material and intended function.
Each laser cladding process follows certified procedures and is thoroughly inspected in collaboration with classification societies to ensure full compliance and lasting results.
We use certified procedures and perform thorough inspections in cooperation with classification societies for every repair.

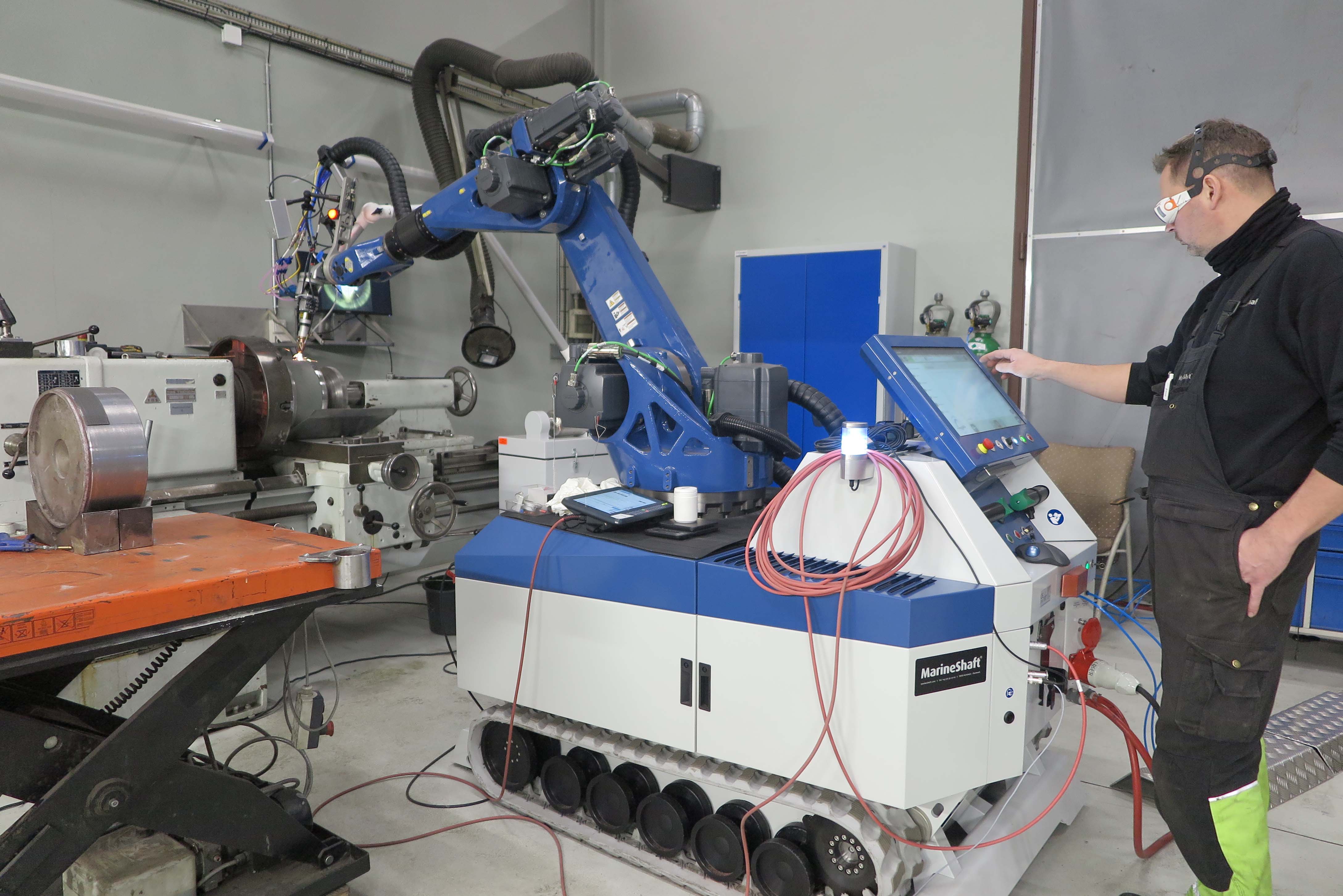

Robotic Accuracy

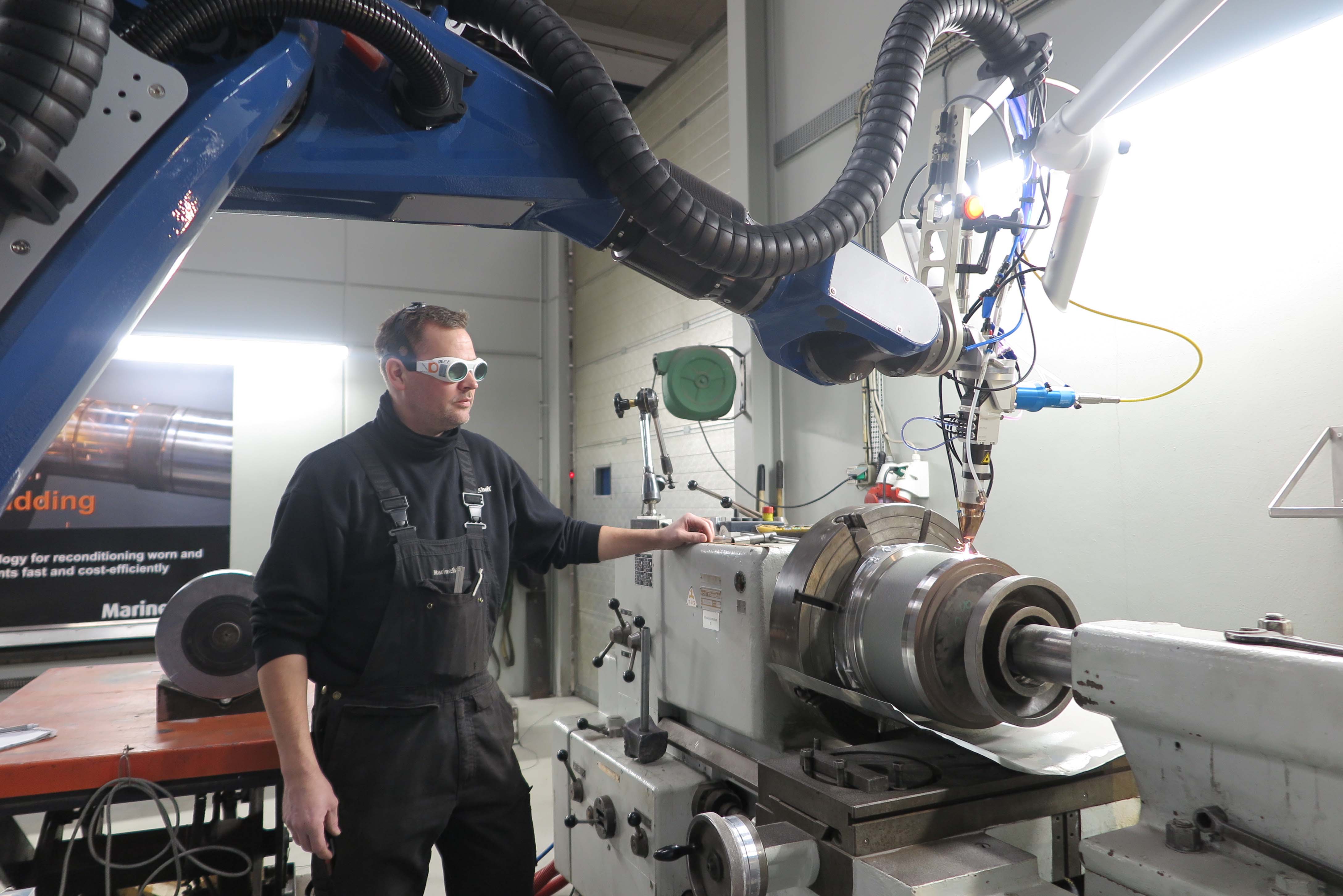

Our numerically controlled robotic systems apply powder alloys precisely, ensuring optimal surface geometry and hardness.
The latest addition to our workshop includes a robotic unit with a 45 kg lifting capacity and a laser lance capable of reaching 700 mm into internal parts as narrow as Ø170 mm. This setup expands our ability to repair confined and complex geometries like couplings and internal cylinders.

Broad Industry Applications

We apply laser cladding to repair and reinforce:

• Propeller shafts and hubs
• Rudder stocks and assemblies
• Stabilizer fins and gear components
• Thruster and generator parts
• Wind turbine components
• Industrial machinery parts

Always Ready for Urgent Repairs

With fully equipped workshops, class-approved techniques, and an expanded fleet of robotic units, MarineShaft is always prepared for urgent assignments. Whether it's wear, corrosion, or a critical breakdown - our team delivers reliable, best-in-class repairs, worldwide.

Case study: In-house urgent repair of gearbox housing

3D Scanning and laser cladding send the vessel back in operation with minimal downtime

A gearbox housing was sent to our workshop in Hirtshals, where it was cleaned, disassembled, and 3D scanned to check assembly flange flatness. The scan showed deflection within tolerance, but both bearing surfaces were damaged and ovalized due to bearing failure.

To repair them, we used laser cladding with Inconel 625. Due to the urgency, both laser cladding machines were run simultaneously, enabling quick rebuilding. The surfaces were then machined to original dimensions, and a final 3D scan confirmed flange flatness remained within tolerance.

The repaired gearbox was promptly returned, allowing the vessel to resume operations with minimal disruption.

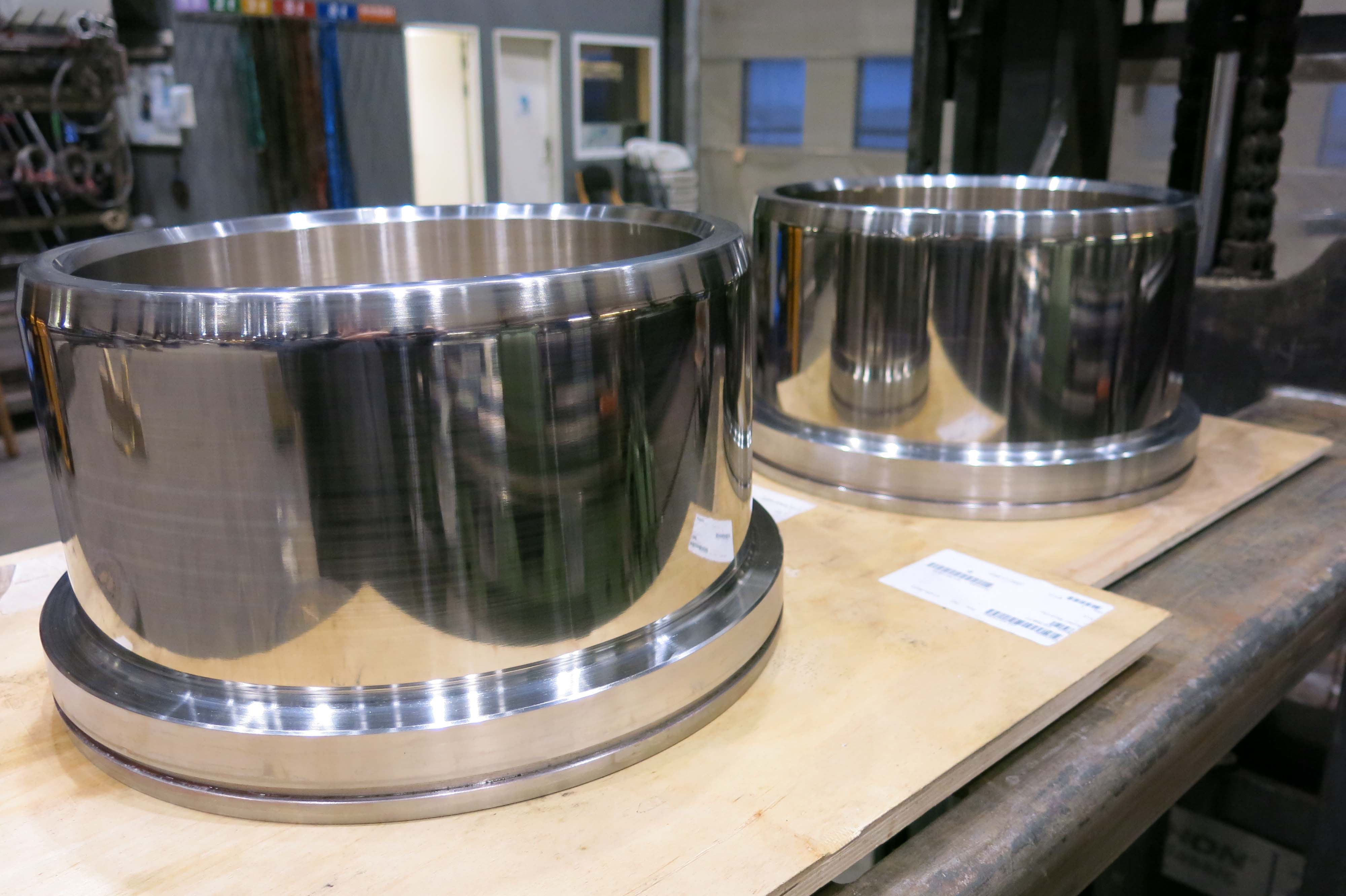

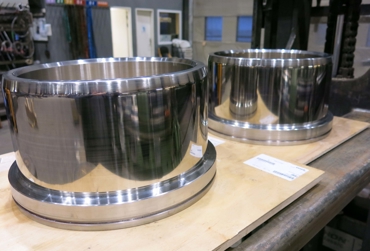

Case study: Urgent repair of two Duplex Shaft seal liners

Laser Cladding of Two Damaged Duplex Shaft Seal Liners for Tunnel Thruster

Vessel M/V Wind of Change.

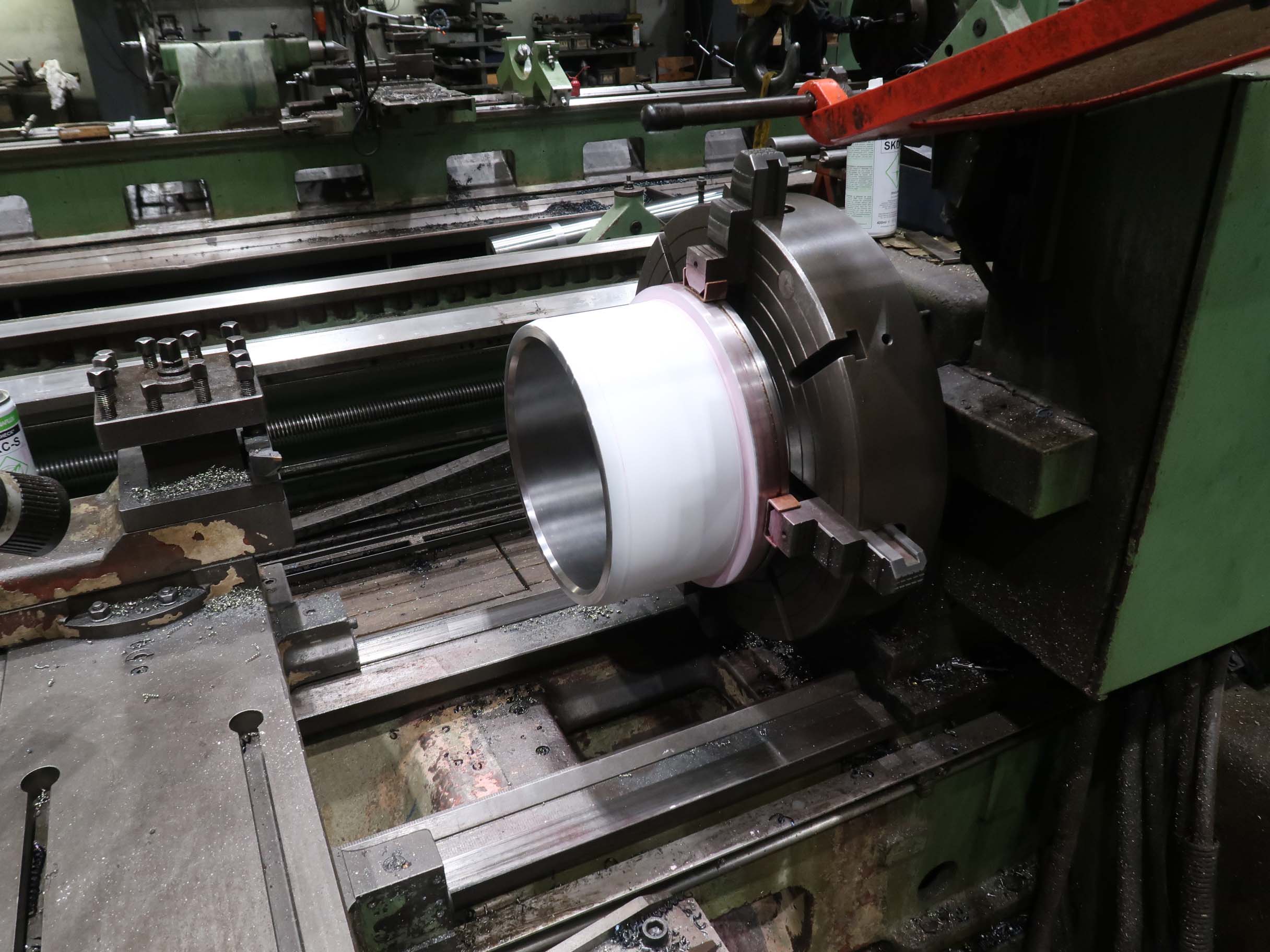

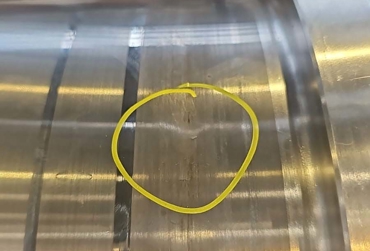

Each liner measured Ø339,85/270 x 185,5 mm. The liners had a surface layer of chromium, which we removed by machining, after which we conducted a liquid penetrant test of the surface.

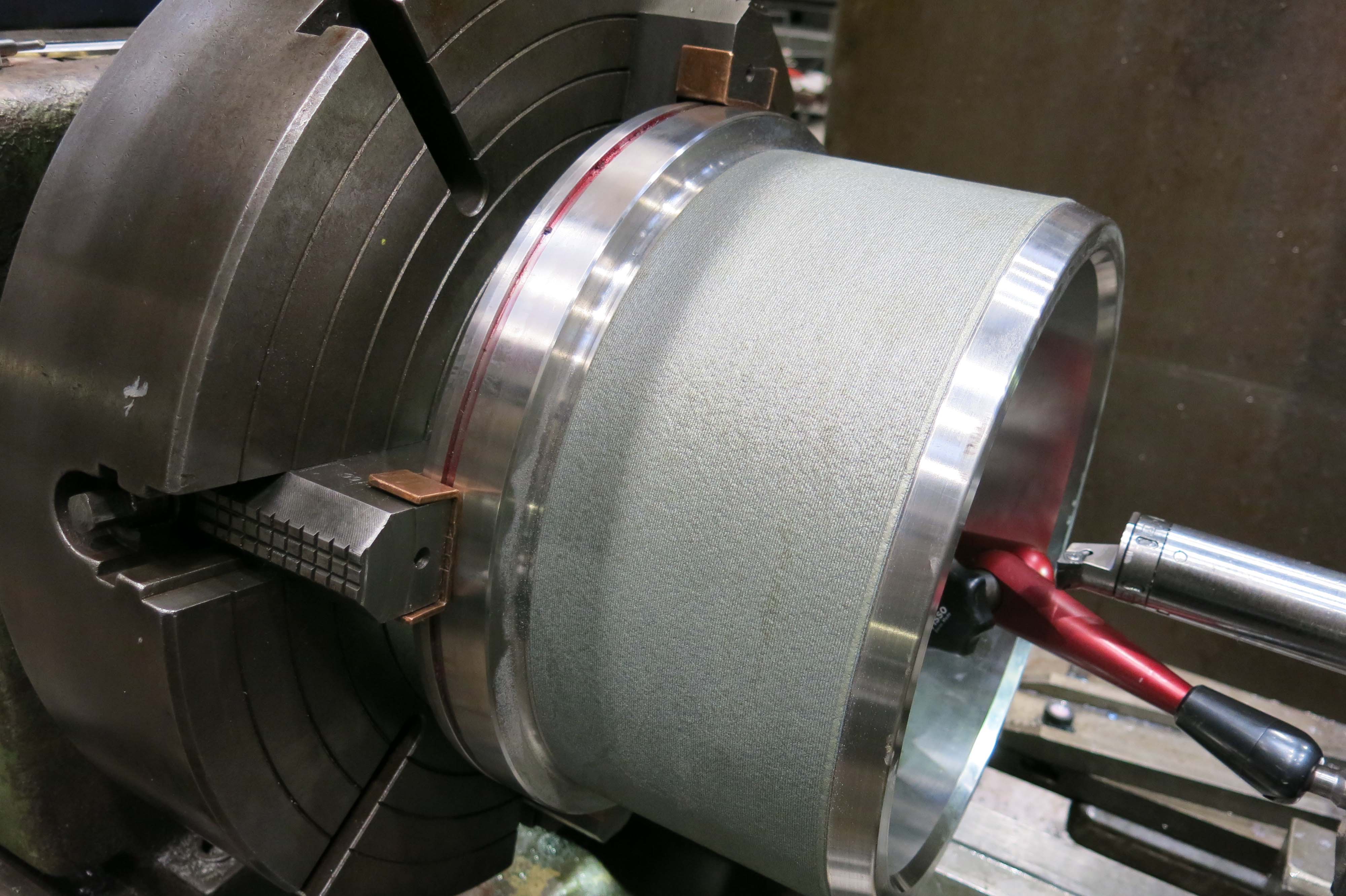

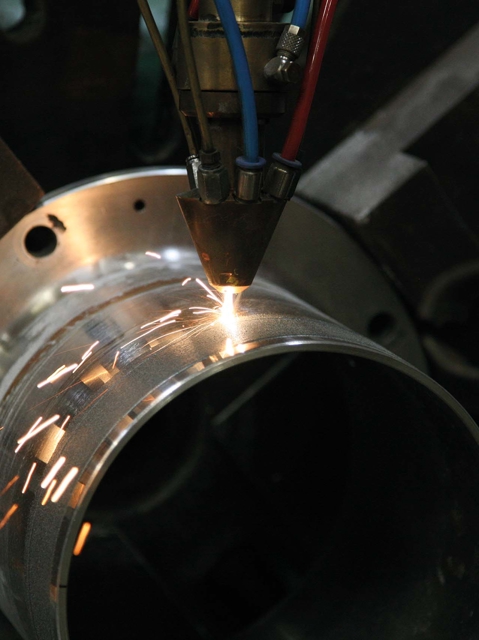

We applied three layers of Stellite 21 by laser cladding, a process which adds 0,8 mm of material with each layer applied. The new material fuses to the base material, and an even harder and more wear-resistant surface is obtained.

The two liners were machined to the original dimensions, and we completed the job in only four days.
